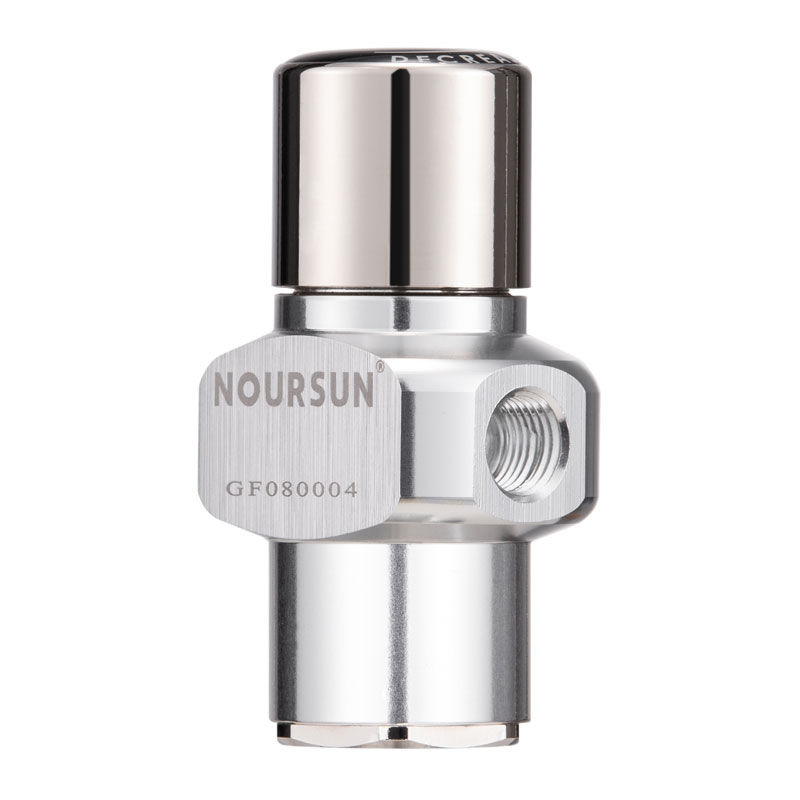

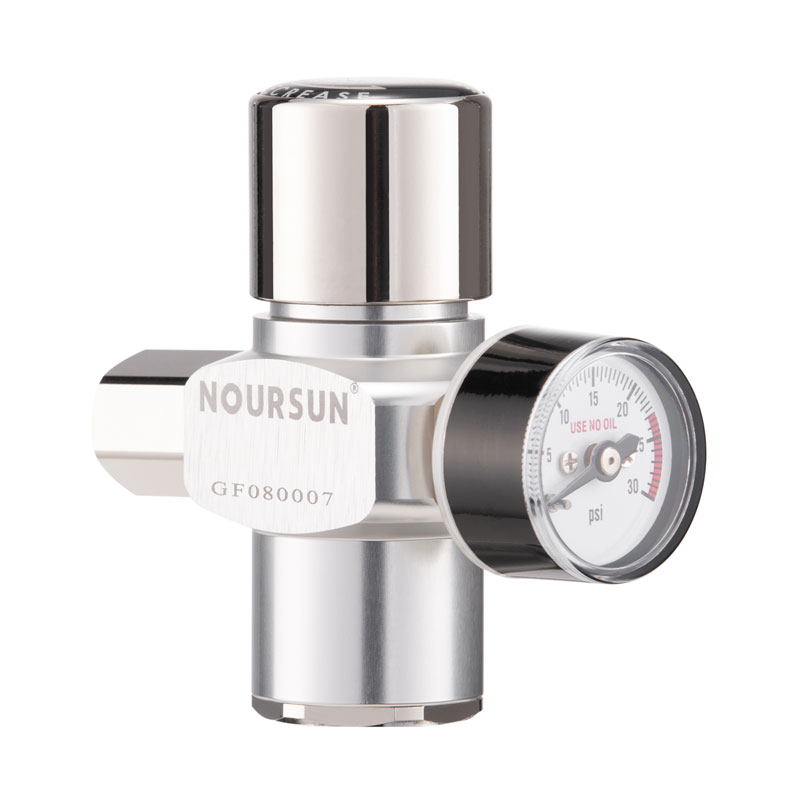

RP02-Mini CO2 Regulator
Specifically designed for beer dispensing systems using 2L, 4L, and 5L mini-kegs and compatible with a variety of small gas cartridges. Its versatile design also makes it suitable for a wide range of other low-pressure and low-flow applications.
Compact and lightweight for easy portability and handling.
Leak-free cartridge puncture technology for maximum gas utilization and user safety.
Stable working pressure and flow rate for consistent pouring and minimal foam.
Multiple configuration options, including adjustable output, an integrated pressure gauge, and cartridge holder accessories.
| Material | ▲ | Aluminum | ||
| Medium | N2、CO2 | |||
| Operating Temperature | -5℃~43℃ | |||
| Max. Working Pressure | 12Mpa | |||
| Proof Pressure | 30Mpa | |||
| Output Pressure | ▲ | 0.07~0.4Mpa | ||
| Output Pressure Accuracy | ±0.03MPa | |||
| Pressure Indication | Axial pressure gauge | |||
| Indication Accuracy | Class IV (EN 837-1) | |||
| Inlet Port | ▲ | 3/8-24UNF / 5/8-18UNF | ||
| Outlet Port | ▲ | M8*0.75 / G1/8 | ||
| Net Weight | 113g | |||
| (▲ marked parts are standard customizable spec.) | ||||
| Material | ▲ | Aluminum | ||
| Medium | N2、CO2 | |||
| Operating Temperature | -5℃~43℃ | |||
| Max. Working Pressure | 12Mpa | |||
| Proof Pressure | 30Mpa | |||
| Output Pressure | ▲ | 0.07~0.4Mpa | ||
| Output Pressure Accuracy | ±0.03MPa | |||
| Pressure Indication | Handwheel indicator dial | |||
| Inlet Port | ▲ | 3/8-24UNF / 5/8-18UNF | ||
| Outlet Port | ▲ | M8*0.75 / G1/8 | ||
| Explosion-proof Plate Pressure | 20±2Mpa | |||
| Net Weight | 98g | |||
| (▲ marked parts are standard customizable spec.) | ||||
| Material | ▲ | Aluminum | ||
| Medium | N2、CO2 | |||
| Operating Temperature | -5℃~43℃ | |||
| Max. Working Pressure | 12Mpa | |||
| Proof Pressure | 30Mpa | |||
| Output Pressure | ▲ | 0.07~0.4Mpa | ||
| Output Pressure Accuracy | ±0.03MPa | |||
| Pressure Indication | Axial pressure gauge | |||
| Indication Accuracy | Class Ⅳ (EN 837-1) | |||

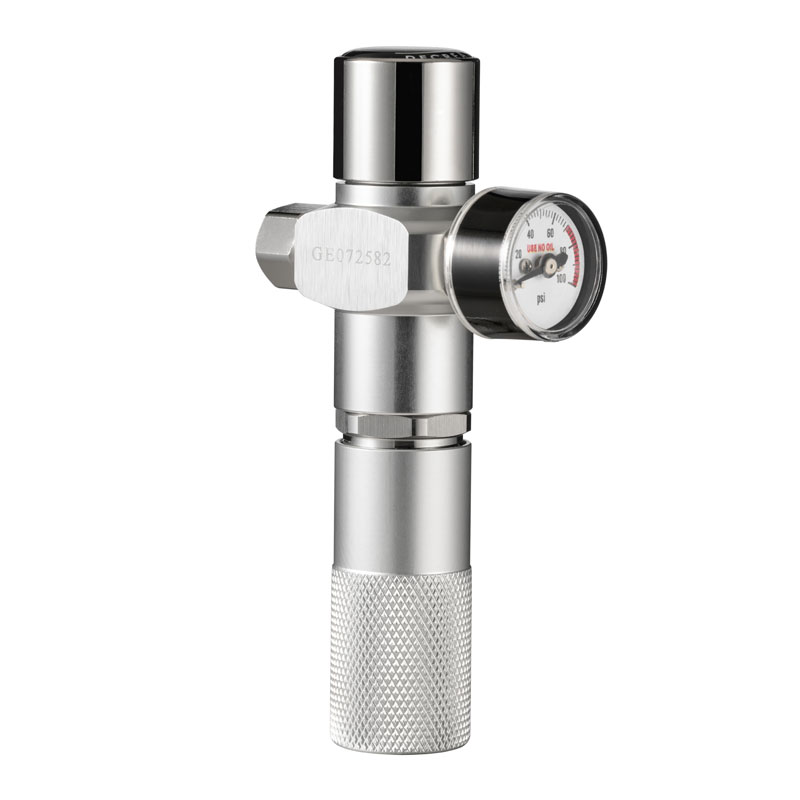

| Inlet Port | ▲ | 8g threadless gas cylinder | ||
| Outlet Port | ▲ | M8*0.75 / G1/8 | ||
| Net Weight | 146g | |||
| (▲ marked parts are standard customizable spec.) | ||||
| Material | ▲ | Aluminum | ||
| Medium | N2、CO2 | |||
| Operating Temperature | -5℃~43℃ | |||
| Max.Working Pressure | 12Mpa | |||
| Proof Pressure | 30Mpa | |||
| Output Pressure | ▲ | 0.07Mpa≤Preset pressure≤0.4Mpa | ||
| Output Pressure Accuracy | ±0.03MPa | |||
| Inlet Port | ▲ | 3/8-24UNF / 5/8-18UNF | ||
| Outlet Port | ▲ | M8*0.75 / G1/8 | ||
| Explosion-proof Plate Pressure | 20±2Mpa | |||
| Net Weight | 101g | |||
| (▲ marked parts are standard customizable spec.) | ||||

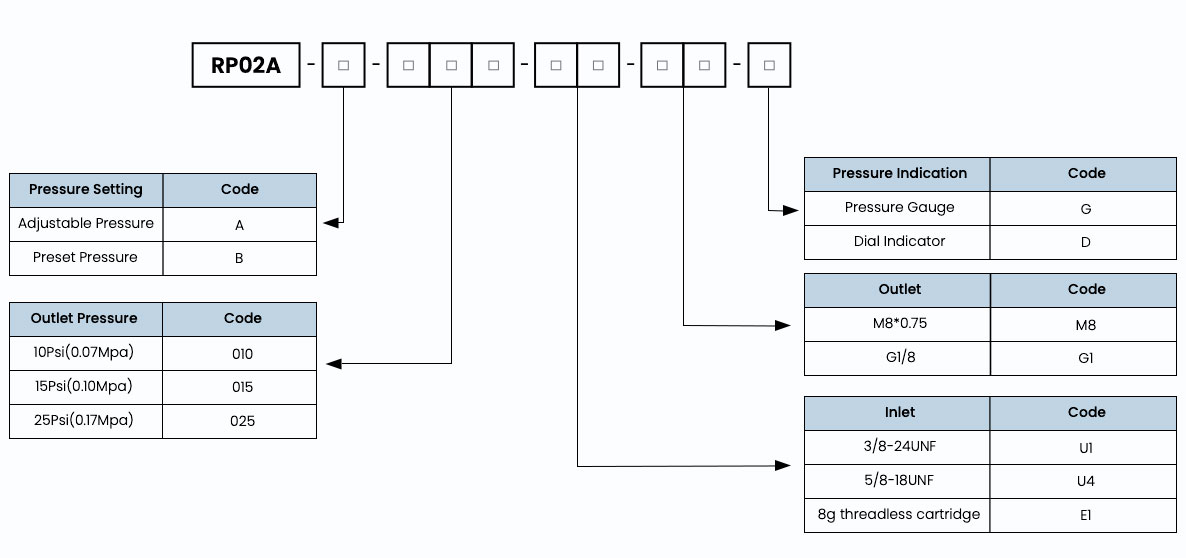

* Ordering code = Model +"Pressure Setting"+ "-" +Outlet Pressure+"-" + "Inlet"+"-"+"Outlet"+"-"+"Pressure Indication"
Example: RP08BF-A-010-U1-M8-G
