A propane regulator is a mechanical pressure-reducing valve installed between the propane tank and the appliance. It takes the high, fluctuating pressure inside the tank — often 100 psi or more on a warm day — and drops it to a stable, low pressure that a burner can safely burn, normally about 11 inches of water column, which is roughly 0.4 psi.

That pressure gap matters far more than most people realize. A typical 20 lb grill cylinder holds liquefied propane under vapor pressure, and that pressure moves up and down with temperature. At 70°F, you are looking at around 110 psi; at 110°F, the vapor pressure of propane climbs toward 196 psi, according to standard industry vapor-pressure tables. The appliance orifices are sized for a low, controlled inlet pressure. Unregulated gas at even a fraction of 100 psi would create violent flames, soot, wasted fuel, and a genuinely dangerous operating condition.

This guide explains what a regulator does, how it operates step by step, the main types you will encounter when replacing or specifying one, the specifications that determine whether it fits your equipment, the failures you are most likely to see in service, and when your project should move from commodity hardware to a specialist pressure-regulator manufacturer.

What Is a Propane Regulator?

A propane regulator is a gas-flow control device that reduces storage pressure from the cylinder to the appliance working pressure, then holds that downstream pressure steady while the appliance draws varying amounts of gas. It is installed either directly on the tank valve or along the gas line between the tank and the equipment.

Inside the housing sits a small but carefully balanced mechanical system. The exact design differs from one model to another, but these components are almost always present:

• A die-cast brass or zinc-alloy body that connects the tank side to the appliance side.
• A resilient diaphragm that senses the outlet pressure.
• A spring that sets the desired outlet pressure level.
• A valve seat and nozzle assembly that opens or closes the gas path.
• A vent port that lets the upper diaphragm chamber equalize with atmospheric pressure.

The regulator is a purely mechanical device. There is no electronics inside, no motor, no sensor. It behaves like an automatic valve that adjusts itself continuously based on the pressure downstream. That is why a well-built regulator can run for years without attention while still delivering consistent performance.

The numbers you see on the packaging — 11" WC, 10 psi, 30 psi — describe the outlet pressure that the spring is calibrated to hold. When someone says a regulator is set for a barbecue or set for low pressure, they are talking about that calibration.

How Does a Propane Regulator Work?

A regulator works by balancing two opposing forces: a spring pushing toward the open position, and gas pressure against the diaphragm pushing toward the closed position. When the two forces are equal, the valve stays in a fixed position and gas flows at a steady rate. Here is the sequence in practical terms:

1. When the appliance is off, downstream pressure holds the valve closed against the spring.
2. When you open a burner, gas flows downstream and the pressure at the diaphragm drops slightly.
3. The spring wins the balance, pushes the diaphragm down, and lifts the valve seat open.
4. Gas moves through the seat into the outlet line until downstream pressure returns to the spring set-point.
5. The diaphragm then rises again and closes the seat.

This open-close cycle repeats many times per second. During a normal cookout, the valve seat opens and closes continuously, letting only the exact amount of gas through that the burner demands. The result is a nearly constant outlet pressure from the moment you crack the tank valve until the moment you shut it off.

Single-Stage vs Two-Stage Regulation

With a single-stage regulator, the valve takes full tank pressure and drops it straight down to 11 inches of water column in one step. The trade-off is that no spring is perfect: as tank pressure changes with temperature and as the cylinder empties, the outlet pressure wanders slightly. Most grills tolerate this, which is why single-stage designs dominate outdoor cooking equipment.

A two-stage setup splits the work. The first stage steps tank pressure down to around 10 psi. The second stage then reduces that 10 psi down to 11 inches of water column. Because the first stage isolates the second stage from tank-pressure swings, the final output remains exceptionally stable. This is why RVs, boats, and multi-appliance installations use two-stage regulators.

Types of Propane Regulators

Not all regulators are interchangeable. The correct type depends on the appliance, the gas flow rate, and whether the tank feeds a single device or an entire gas system. The table below summarizes the most common categories.

The low-pressure single-stage regulator is the unit you see on most outdoor grills. It is compact, affordable, and matched to a specific flow range. The high-pressure regulator is a completely different product family: it is rated in psi rather than inches of water column and is designed for equipment that genuinely needs pressure, such as construction heaters and brazing torches.

Two-stage regulators look like two bodies joined together and are normally sold with the first and second stage already matched. If you are wiring up a small camper or a backup household circuit, choose this type. Adjustable regulators are convenient during installation and testing, but once you set the outlet pressure, the adjustment should be secured so vibration cannot change the calibration.

Key Specifications to Check Before Buying

Before purchasing a propane regulator, compare these five values against your appliance manual. A regulator can be mechanically sound and still completely wrong for your application.

Flow capacity deserves special attention. A typical gas grill draws 30,000 to 50,000 BTU/hr at full heat, while a 60,000 BTU shop heater draws more than that. Read the BTU rating stamped on the appliance and choose a regulator that exceeds it by at least 20%. When in doubt, a larger capacity is safer than a smaller one.

Connection sizes are the other common source of frustration. The standard outdoor grill connection in North America is the QCC1/Type 1 fitting with a left-hand thread. RV and bulk-tank systems often use the POL fitting, and some appliance regulators accept 1/4 inch NPT. Measure the threads of the tank valve or hose before ordering, because returns and reordering are the most common cause of project delays.

Common Propane Regulator Problems and Troubleshooting

Under normal use, a propane regulator should last many years. But like any mechanical component, it can wear out, freeze, or simply be too small for the connected load. These are the failures you are most likely to encounter in the field:

• Weak or yellow flame: The regulator is either undersized for the total load, or the diaphragm has softened and no longer holds the correct set-point. Check the BTU capacity first, then swap in a known-good unit.
• Frost on the regulator or tank valve: Moisture in the gas stream freezes as expanding gas cools the metal. This happens most often on damp days. Keep the vent and tank opening free of ice and allow the unit to warm up before use.
• Continuous hissing at the regulator: Small leaks usually occur at the threaded connections rather than through the body. Test with soapy water. If bubbles form at the vent opening, replace the regulator.
• Surging flame: Often caused by a contaminated valve seat or a fatigued spring. Cleaning rarely fixes an internal fault; replacing the regulator is cheaper and safer.
• Set-point drift over time: Springs relax after years of service. If the flame pattern changes gradually and the burner is clean, suspect the regulator.

One rule applies across all of these situations: do not attempt to rebuild a regulator yourself. The calibration belongs to the manufacturer, and home repairs rarely hold. Replace the unit with a correct specification and verify that the outlet pressure matches the appliance requirement.

When to Work With a Specialist Regulator Manufacturer

For a single grill, replacing a regulator is a simple hardware decision. But for companies that design gas appliances, build beverage machines, or maintain fleet equipment, the regulator becomes an engineering specification. A poorly built regulator creates returns, warranty claims, inconsistent performance, and unhappy end users.

This is where experience in pressure control matters. Noursun (Ningbo Noursun Industrial Co., Ltd.), a gas pressure regulator manufacturer established in 2012 in Ningbo, China, treats pressure regulation as its core business rather than a side product line. According to the company profile page, Noursun invests roughly 7% of annual revenue into research and development and holds more than 35 patents in gas pressure control technology. That background directly influences how consistently a regulator holds its calibration over thousands of open-close cycles.

The interesting part is that the engineering transfers across gases. A propane regulator and a CO2 regulator are built around the same fundamentals: spring force, diaphragm travel, valve geometry, and tight tolerance on the seat. When you need stable pressure for carbonated beverage lines, aquarium CO2 dosing, or paintball tank filling, you are looking at the same physics with a different gas medium.

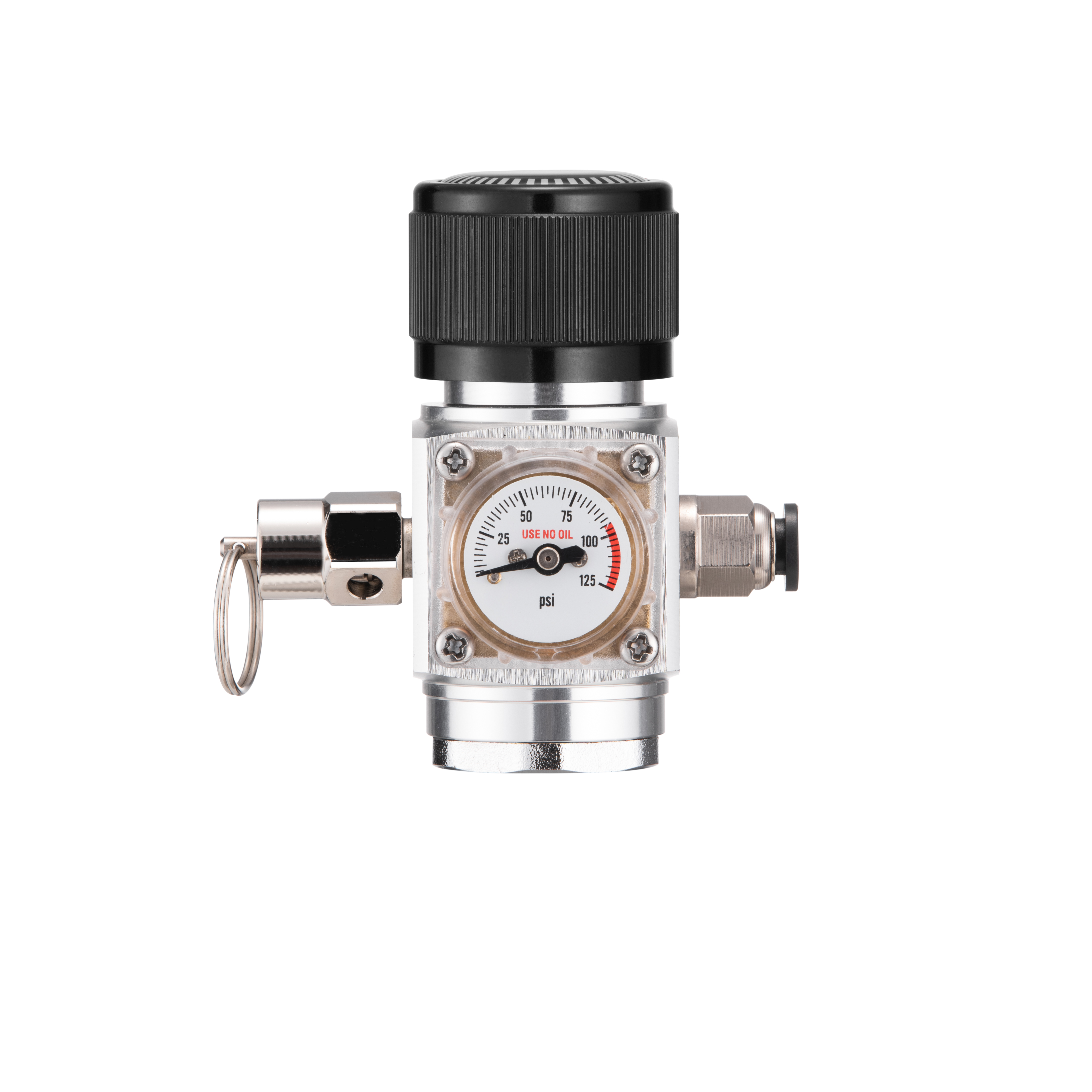

Noursun RP20 Beer CO2 Regulator for Draft DispensingThis beer CO2 regulator maintains steady downstream pressure during long pouring sessions, helping draft beer keep consistent carbonation and predictable foam.View Product →

For example, Noursun produces the RP20 Beer CO2 Regulator for beverage dispensing lines, holding downstream CO2 pressure steady through long pouring sessions so the beer maintains consistent carbonation. For soda and sparkling-water makers, the compact RP06 Sparkling Water Pressure Regulator is a single-stage unit designed for countertop carbonation machines. And for aquariums or hydroponic setups where fish and plants need predictable CO2 dosing around the clock, the RP32 Dual-Stage CO2 Regulator with Manometer removes the outlet-pressure drift you typically get from a single-stage unit.

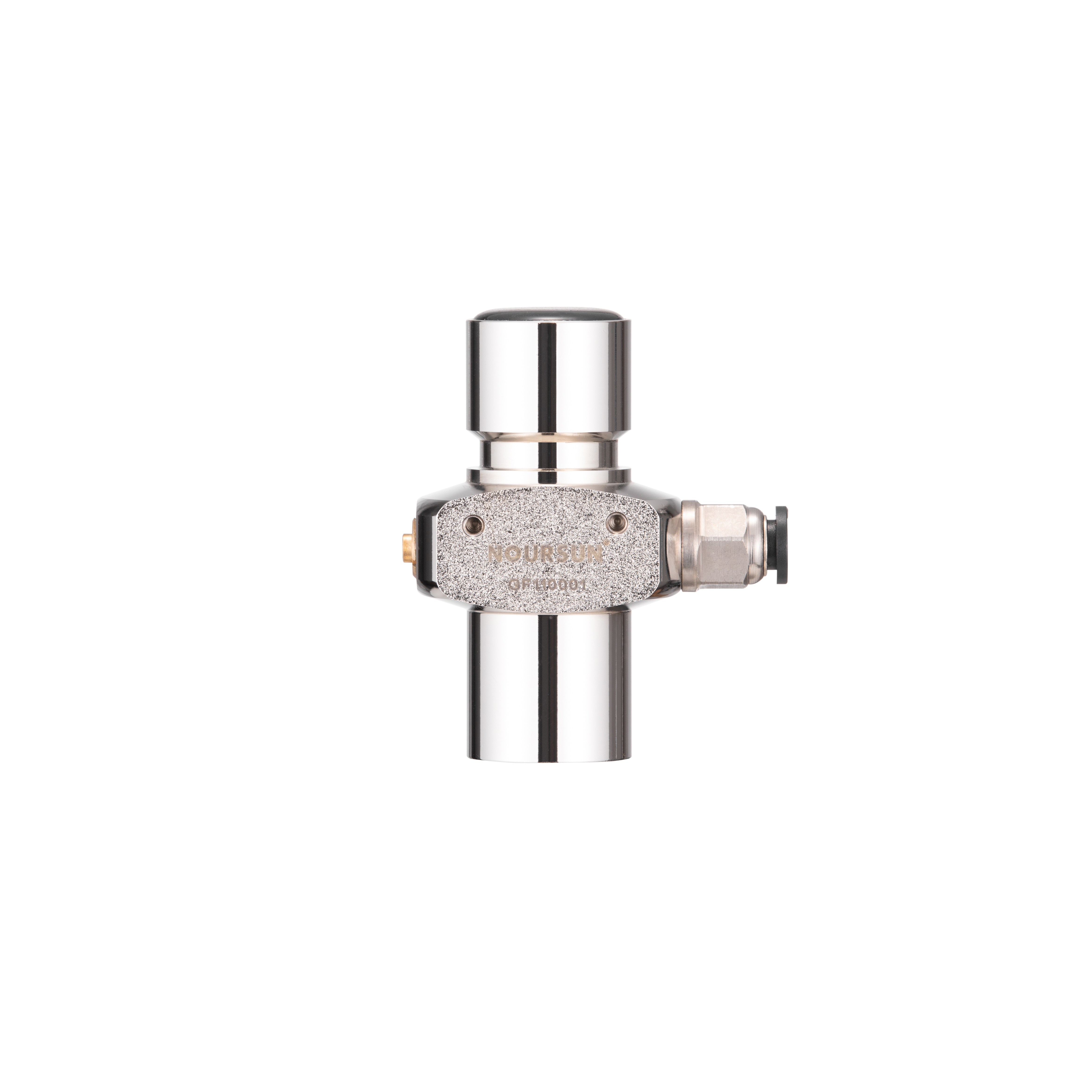

Noursun RP06 Sparkling Water Pressure RegulatorA compact single-stage regulator designed for countertop carbonation machines, featuring a top-outlet layout and built-in relief valve for safe, efficient sparkling water dispensing.View Product →

Noursun RP32 Dual-Stage CO2 Regulator with ManometerA dual-stage regulator with manometer for aquarium and hydroponic CO2 dosing, featuring a solenoid valve, needle valve, and bubble counter to keep output stable within ±1 bubble per minute.View Product →

If you are an OEM, importer, or service business that needs consistent gas pressure control, it pays to discuss flow curves, port sizes, and body materials with an engineer before you commit to a part number. The Noursun engineering team can be reached through the contact page for custom pressure-regulator requirements and application-specific tuning.

Frequently Asked Questions About Propane Regulators

What does a propane regulator do?

It reduces the high, variable pressure of propane vapor in the tank to a low, stable pressure that the appliance is designed for — normally around 11 inches of water column for household grills and heaters — and then modulates the flow as the appliance draws gas.

How do I know if my propane regulator needs replacing?

Replace the regulator if you notice a persistent weak flame, yellow sooty flames, frosting on the body, a hissing leak at the vent, or a gradual loss of heat output that cleaning the burner does not fix. Any visible physical damage is also grounds for replacement.

Why does my propane regulator freeze up?

Rapid gas expansion cools the metal components, and moisture present in the gas line condenses and freezes on the surface. This is common on humid days or when a freshly filled tank introduces moisture. Keeping the vent clear and letting the unit warm up usually resolves it.

Can I use one regulator for two or more appliances?

Yes, if the regulator flow capacity exceeds the combined BTU load of all connected appliances. For multiple permanent appliances, use a two-stage regulator with a manifold so each branch receives stable pressure when other devices cycle on and off.

What is the difference between a 10 psi regulator and an 11 inch WC regulator?

They use different units and serve different purposes. One psi equals about 27.7 inches of water column, so 11 inches WC is roughly 0.4 psi. A 10 psi regulator therefore delivers about 25 times more outlet pressure and is intended for high-pressure equipment, not standard grills.

Can I use a CO2 regulator on a propane tank?

No. Propane and CO2 have different vapor pressures, flow behaviors, and material compatibility requirements. Regulators are gas-specific for a reason, and swapping them introduces leakage and combustion risks. Always match the regulator to the gas that will actually flow through it.

How long should a propane regulator last?

A quality regulator typically lasts 10 to 15 years indoors and fewer when exposed to harsh outdoor conditions. Inspect it annually, and replace it whenever the tank has been involved in a pressure-relief event, a severe drop, or visible corrosion.

Your CO2 cylinder holds roughly 800 psi. Your soda machine needs a steady 75 psi to carbonate water consistently. The only component between those two numbers is a gas pressure regulator, and if its output drifts by even 5 psi, the carbonation level changes, the flavor becomes inconsistent, and customers notice immediately. The same pressure-stability principle applies to a beer kegerator at 12 psi, an aquarium CO2 injector at 30 psi, or a paintball gun at 800 psi.

The direct answer to the most common buying question is this: choose a gas pressure regulator that delivers stable outlet pressure at your required flow rate, with seals compatible with your gas, and a stage design that matches your application's precision needs. Everything else is secondary. This guide walks through these decisions in depth.

What Is a Gas Pressure Regulator and How Does It Work?

A gas pressure regulator is a mechanical device that reduces a high inlet pressure to a much lower, controlled outlet pressure. It does this continuously: as gas flows out, the regulator opens; as pressure builds, it closes. The core mechanism relies on a spring-loaded diaphragm that balances downstream pressure against spring force.

Here is the typical sequence inside a single-stage regulator:

• Gas enters the high-pressure chamber from the cylinder.
• A valve seat opens or closes based on the position of a diaphragm.
• The diaphragm moves when downstream pressure rises or falls.
• The spring setting determines the target outlet pressure.
• When gas demand stops, pressure builds to the set point and the valve closes.

The most common gas used in consumer and light industrial regulators is carbon dioxide (CO2), which is stored as a liquid in cylinders. At room temperature, a partially filled CO2 cylinder holds a vapor pressure of approximately 800 to 1100 psi. The regulator must safely reduce this to something usable, typically 12 to 100 psi depending on the application.

The regulator is the first point of contact between the gas source and your equipment, so by the time gas reaches the final device, the pressure must already match the specification. That is why regulator quality has a direct and measurable impact on product consistency.

Critical Specifications to Check Before You Buy

Buying a gas pressure regulator without checking the key specifications is like buying a pump without knowing the flow rate you need. These are the parameters that define whether a regulator will work in your system:

Beyond pressure and flow, check these details:

• Inlet connection size: Standard CO2 cylinder thread is CGA-320, but many compact systems use DIN 477 or a quick-connect fitting. Verify the connection before purchase because adapters add extra leak points.
• Seal material: Buna-N and EPDM are common, but EPDM is the best choice for CO2 because it resists gas permeation and does not degrade under pressure cycling.
• Gauge inclusion: A dual-gauge regulator shows both cylinder pressure and delivery pressure, which makes troubleshooting much easier.
• Body material: For food and beverage applications, brass with nickel plating is the industry standard because it is corrosion resistant and does not introduce metallic taste.

Single-Stage vs Dual-Stage: Which One Do You Need?

This is one of the most common questions from customers. A single-stage regulator performs one pressure reduction step. It is simpler, smaller, and more affordable. However, its outlet pressure will change as the cylinder pressure changes. As a CO2 cylinder empties, its vapor pressure gradually falls, causing the regulator to slightly reduce its output. The amount of drift depends on the design, but it can be as much as 5 to 15 psi in a typical single-stage unit.

A dual-stage regulator reduces pressure in two steps. The first stage drops cylinder pressure down to an intermediate pressure, and the second stage brings it to the final delivery pressure. Because the second stage sees a relatively constant inlet pressure, the output stays remarkably stable. Dual-stage regulators are the preferred choice for applications where pressure fluctuation directly affects product quality, such as:

• Precision aquarium CO2 dosing where the bubble rate must remain constant.
• Carbonated beverage systems where the gas-to-water ratio determines flavor.
• Laboratory and medical applications where exact pressure is non-negotiable.

A good rule of thumb: if your outlet pressure is below 50 psi and you are using the regulator until the cylinder is nearly empty, a dual-stage regulator will pay for itself in consistent output and fewer adjustments.

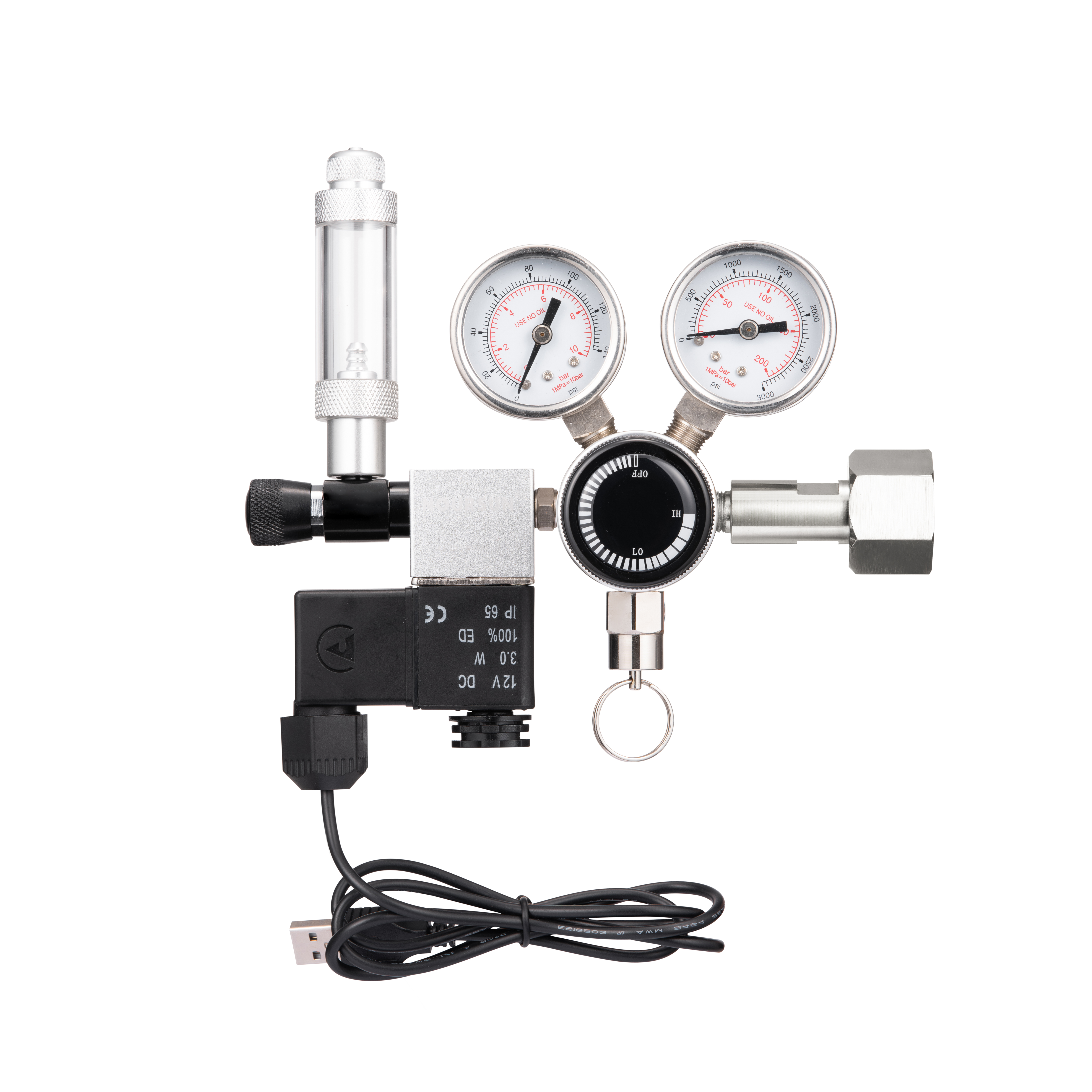

Dual Stage CO2 Regulator with Manometer for Aquarium and Precision ApplicationsThis dual-stage regulator delivers stable output across the full cylinder life, with dual gauges for tank and line pressure. Ideal for aquariums, grow rooms, or greenhouses where consistent CO2 dosing is critical.View Product →

For rough-duty applications like paintball or welding where pressure can vary within a wider window, a single-stage regulator is simpler and more cost-effective. The key difference is not better or worse, but which one fits the precision budget of your process.

How to Match a Regulator to Your Application

Each gas-driven system has a unique pressure and flow profile. Here is a practical breakdown of the main application categories and the regulator features that matter most for each.

For soda water and sparkling water carbonation, the target is consistent gas dosing into chilled water at around 60-100 psi. The regulator must hold that pressure even as the machine cycles on and off. A dual-gauge design helps because you can instantly see whether the output pressure is drifting. The outlet pressure directly determines the volume of CO2 dissolved in the water, so a regulator that holds 75 psi within a tolerance band of plus or minus 2 psi will produce a much more consistent mouthfeel than one that allows drift to 85 psi.

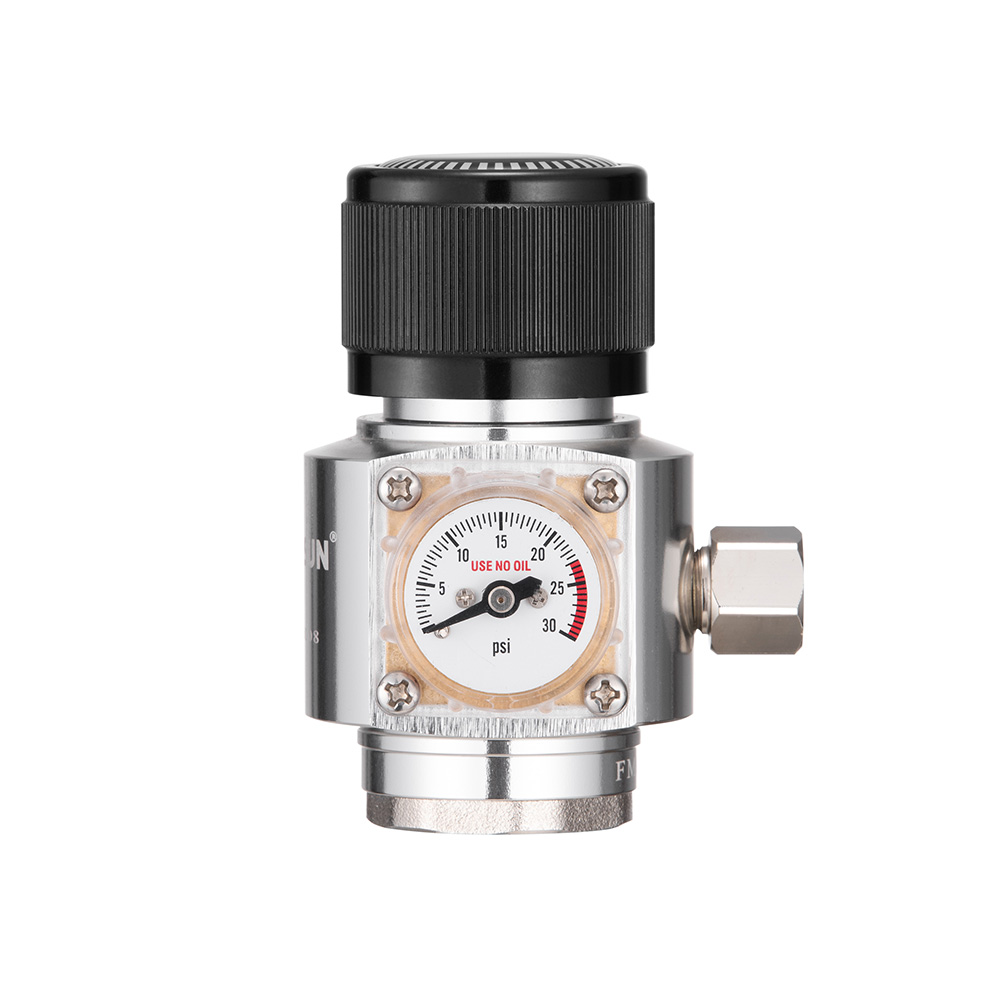

Soda Water CO2 Regulator with Overflow Protection for Carbonation SystemsDesigned for household or commercial carbonation, this regulator lets you fine-tune output pressure for consistent fizz. Its sealing-before-opening mechanism maximizes gas use and safety.View Product →

For beer dispensing, outlet pressure is much lower, typically 12-30 psi, and the flow rate is modest. Here the key concern is pressure creep. If the regulator creeps upward, the beer will over-carbonate and pour with too much foam. A regulator that includes a check valve downstream prevents beverage backflow from damaging the adjustment spring.

Beer CO2 Regulator with Leak-Proof Design for Draft DispensingBuilt for beverage distribution, this compact regulator holds steady low pressure to prevent over-carbonation and foamy pours. Its leak-proof technology ensures safe, efficient gas use.View Product →

For aquarium and hydroponic CO2 dosing, the bubble rate is the only control variable. A dual-stage regulator with a fine adjustment knob and a bubble counter connection is the right tool. The flow rate is tiny, in the range of 30 to 60 bubbles per minute, so the regulator must be very sensitive and smooth in its response.

For industrial and commercial systems, the decision is often about flow capacity. Larger systems may need a regulator that can pass more gas per minute. Our engineering data shows that selecting a regulator with 25 to 30 percent more flow capacity than your peak demand avoids pressure sag during high-demand events.

Once you know your application, the process of choosing becomes straightforward: decide on outlet pressure, determine peak flow, select stage design, and verify the inlet connection. If you need more help, Noursun provides application-specific guidance and engineering support for OEM projects.

Installation and Maintenance Practices That Extend Regulator Life

Even the highest quality gas pressure regulator will fail prematurely if installed or maintained incorrectly. These practices, drawn from field observations across beverage and hydroponic systems, will help you get the most out of your regulator.

1. Always install a check valve directly downstream. This prevents liquid or gas from backflowing into the regulator's internals.
2. Mount the regulator vertically or within 45 degrees of vertical. This reduces diaphragm stress and keeps the spring seat properly aligned.
3. Use a safety relief valve in the system to protect against overpressure events.
4. Regularly inspect the diaphragm and seal for cracks or flattening. Evidence of CO2 permeation is usually visible as a faint oily residue around the bonnet area.
5. Do not exceed the maximum inlet pressure marked on the regulator body. Over-pressurization is the primary cause of catastrophic diaphragm failure.

Cleaning is straightforward: use only mild soapy water. Never use alcohol-based solvents on the regulator body, as they can degrade the rubber seals. After cleaning, allow the unit to dry completely before reconnecting it to the gas line. Also, when storing spare regulators, keep them in a dry, cool place below 30 degrees Celsius because heat accelerates seal aging.

Environmental Factors That Affect Gas Pressure Regulator Performance

The same regulator can behave differently in a cool basement near a beer keg and in a warm shipping container on its way to a distributor. Understanding the environmental variables helps you build a more reliable system.

Temperature is the biggest factor. CO2 cylinder pressure rises with temperature. A cylinder at 20 degrees Celsius shows about 830 psi, while the same cylinder at 30 degrees Celsius rises to about 950 psi. This means the regulator's first stage in a dual-stage design has to handle an inlet swing of over 120 psi across a 10 degree temperature change. In hot environments, the regulator body itself can heat up, which changes the spring force slightly and causes a small output pressure shift. That is why temperature-compensated design matters in high-flow systems.

Humidity is a second factor, especially for regulators installed in outdoor or semi-outdoor units. Condensation can enter the bonnet through the adjustment screw thread, causing corrosion of the spring and eventual seizing. Applying food-grade grease to the adjustment thread is a common preventive measure used in commercial beverage installations.

Dust and particulates are the third factor. In paintball fields, for example, dust can settle on the valve seat after repeated pressure cycling. A disposable inlet filter is a cheap and effective insurance policy. In our experience, more than 40 percent of field returns come from contamination-related seat issues rather than manufacturing defects.

Common Operational Problems and How to Solve Them

Most regulator issues in the field fall into a few predictable categories. Knowing what they look like before they happen saves hours of troubleshooting.

A simple test that most users forget: after closing the supply valve, record the delivery pressure on the gauge, then wait 10 minutes. If the pressure has increased, the valve seat is not sealing. If it has dropped, something downstream is leaking.

Frequently Asked Questions

Q1. Can a CO2 regulator be used for air or nitrogen?

No. CO2 regulators are designed for CO2's specific pressure ranges and seal materials. Using a CO2 regulator with air or nitrogen can lead to leaks and pressure instability because the seals are not optimized for those gases. Choose a regulator specifically rated for the gas you are using.

Q2. How do I set the outlet pressure correctly?

Open the cylinder valve slowly, then rotate the adjustment screw clockwise to increase pressure. Set the desired pressure while gas is flowing, not while the line is sealed. If a system uses a solenoid or intermittent flow, the pressure should be set at the moment of flow, because the regulator output naturally rises when flow stops.

Q3. What regulator size do I need?

Size is determined by peak flow demand. As a general rule, select a regulator that can deliver 25 to 30 percent more flow than your system needs in its highest demand state. Undersizing causes pressure sag and inconsistent performance. Oversizing by a large margin can create oscillation.

Q4. Can I use the same regulator for a beer kegerator and a soda machine?

Not recommended. Beer systems operate in the 12-30 psi range, while soda systems run at 60-100 psi. Using a soda regulator for beer will over-carbonate the beer and create excessive foam. Using a beer regulator for soda will not deliver enough pressure to carbonate water properly.

Q5. Why does my regulator freeze and stop working?

Freezing occurs when CO2 expands rapidly at the valve seat, absorbing heat. This happens when the flow rate is too high for the regulator's capacity. Move the regulator closer to the point of use, use a larger regulator, or choose a regulator designed for high-flow applications with internal heating features.

Q6. How often should a regulator be serviced?

In moderate-use environments, inspect the diaphragm and seals every 12 months. In heavy-duty or high-duty-cycle applications, replace the diaphragm every 6 months. The adjustment spring can last much longer, but it should be checked for corrosion if the regulator shows signs of moisture exposure. For more information about a manufacturer's quality control approach, see Noursun's quality control process.

The Direct Answer: How a Pressure Regulator Works

A pressure regulator is a mechanical device that keeps the downstream pressure at a pre-set level even when the inlet pressure fluctuates or when the flow rate changes. It does this by balancing two opposing forces: a spring force that pushes a valve open, and a gas or liquid force on a flexible diaphragm that pushes the valve closed. When the downstream pressure rises above the set point, the diaphragm moves against the spring, the valve closes a little bit more, and the outlet pressure drops back. When the downstream pressure falls, the spring wins, the valve opens wider, and more fluid is admitted to raise the pressure.

This simple action repeats thousands of times per minute without anyone touching it. In a typical CO2 beverage system, for example, a cylinder may start at 800 psi and end at 300 psi as it empties, yet the regulator keeps the outlet at 30 psi for consistent carbonation.

Inside the Force Balance: Diaphragm, Spring, and Valve Seat

Every pressure regulator, regardless of application, uses the same three mechanical parts to create its force balance system. Understanding these parts is the key to understanding how the regulator behaves under real conditions.

• Diaphragm: A flexible membrane that separates the high-pressure inlet side from the low-pressure outlet side. The downstream fluid pushes against one side of the diaphragm. More downstream pressure means more upward force on the diaphragm.
• Adjusting spring: The spring sits on the opposite side of the diaphragm and pushes down. Turning the adjustment screw changes the spring’s pre-load. The stronger the spring compression, the higher the target outlet pressure.
• Valve seat and poppet: Connected to the diaphragm mechanism, the poppet opens or closes the passage between inlet and outlet. The poppet position is set by the net difference between the spring force and the diaphragm force.

In operation, the sequence is almost continuous. If the outlet pressure drops because someone opens a flow tap, the diaphragm force decreases, the spring moves the poppet toward the open position, and gas flows in until the diaphragm force catches up. If the outlet pressure rises, the poppet moves toward the closed position and restricts flow. The result is a self-correcting system that works entirely on physical forces, with no electronics or external power.

Single-Stage vs Dual-Stage Regulators: What Changes in Practice

A single-stage regulator takes the inlet pressure down to the set outlet point in one step. A dual-stage regulator uses two pressure-reducing chambers in series. This difference is not just technical; it changes how much the outlet pressure drifts as the tank empties.

For low-pressure applications like aquariums or small soda makers, a single-stage regulator may be enough. But for industrial CO2 systems where the cylinder pressure changes dramatically in a short time, the added cost of a dual-stage design is usually justified by the tighter output stability. In practice, the difference becomes visible when you run a long bead of beer from a 5 lb CO2 tank: the single-stage output creeps upward, leading to over-carbonation, while the dual-stage model holds the pressure closer to the set point.

How Regulators Behave Across Real Applications

Different applications stress the regulator in different ways. A pressure regulator that works perfectly in a soda system may fail in a hydroponics setup because of flow demand or wet environment. Let’s look at three common scenarios where regulator behavior matters most.

Beverage carbonation: Here the regulator handles between 20 psi and 60 psi on the outlet side, while the inlet may start above 800 psi. The regulator must be sensitive enough to adjust with every small change in flow rate, yet robust enough to avoid freezing from the gas expansion. A mini CO2 regulator designed for compact soda units needs the same mechanical core as a full-size unit but with a smaller footprint and lighter spring.

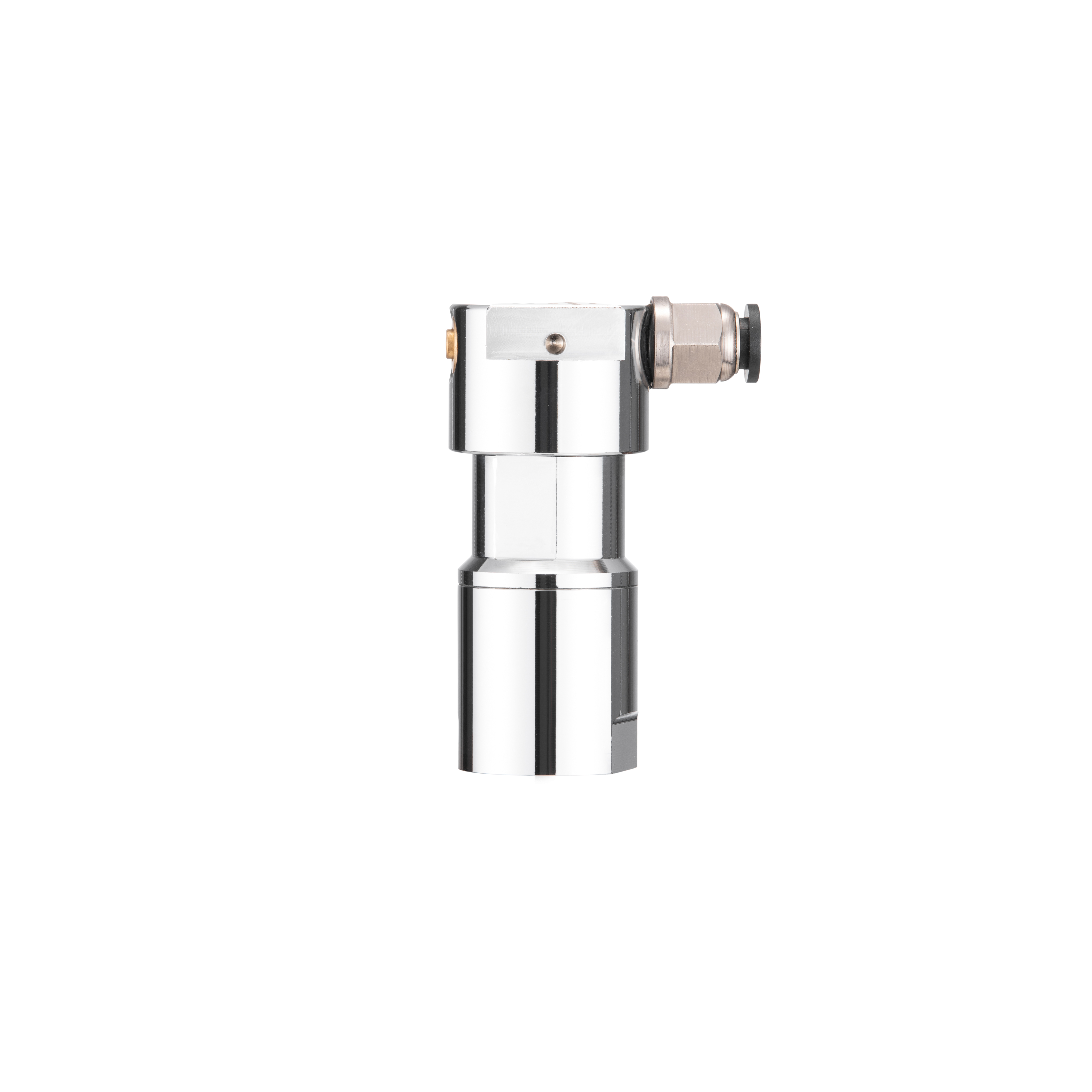

Compact Mini CO2 Regulator for Beverage and Low-Pressure ApplicationsThis mini regulator is tailored for small keg systems and cartridges, offering stable output and a leak-free design. Its compact size suits portable setups, while adjustable pressure and gauge options match diverse low-flow needs.View Product →

Aquarium and hydroponics CO2 dosing: In planted tanks, CO2 injection rates are controlled in very small increments. A regulator built for aquarium use often includes a needle valve downstream to fine-tune the bubble count. The main regulator needs to maintain its set pressure even when the CO2 cylinder is nearly empty. This is where a dual-stage design or a single-stage with an extra gauge really pays off.

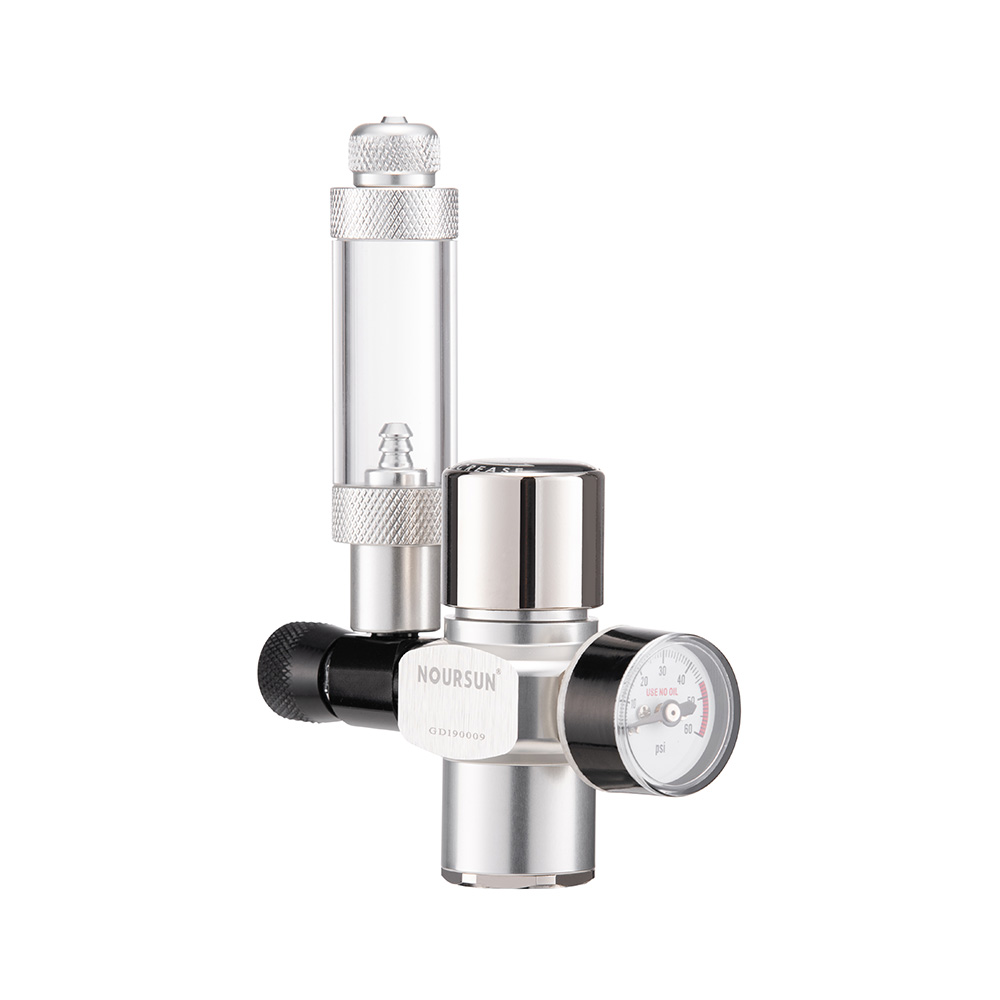

Aquarium CO2 Regulator with Needle Valve and Bubble CounterDesigned for planted tanks, this regulator ensures precise CO2 dosing with a built-in needle valve and bubble counter. Its compact form fits 74g cartridges, and the integrated gauge aids monitoring.View Product →

Beer dispensing: Draft beer systems typically run at 10 psi to 15 psi, and the regulator must hold that pressure through long serving periods. A beer-specific CO2 regulator also has to resist frosting, since the pressure drop across the valve can create cold temperatures. In this scenario, the manufacturer’s material choice for the body and the seat compounds directly affects long-term reliability.

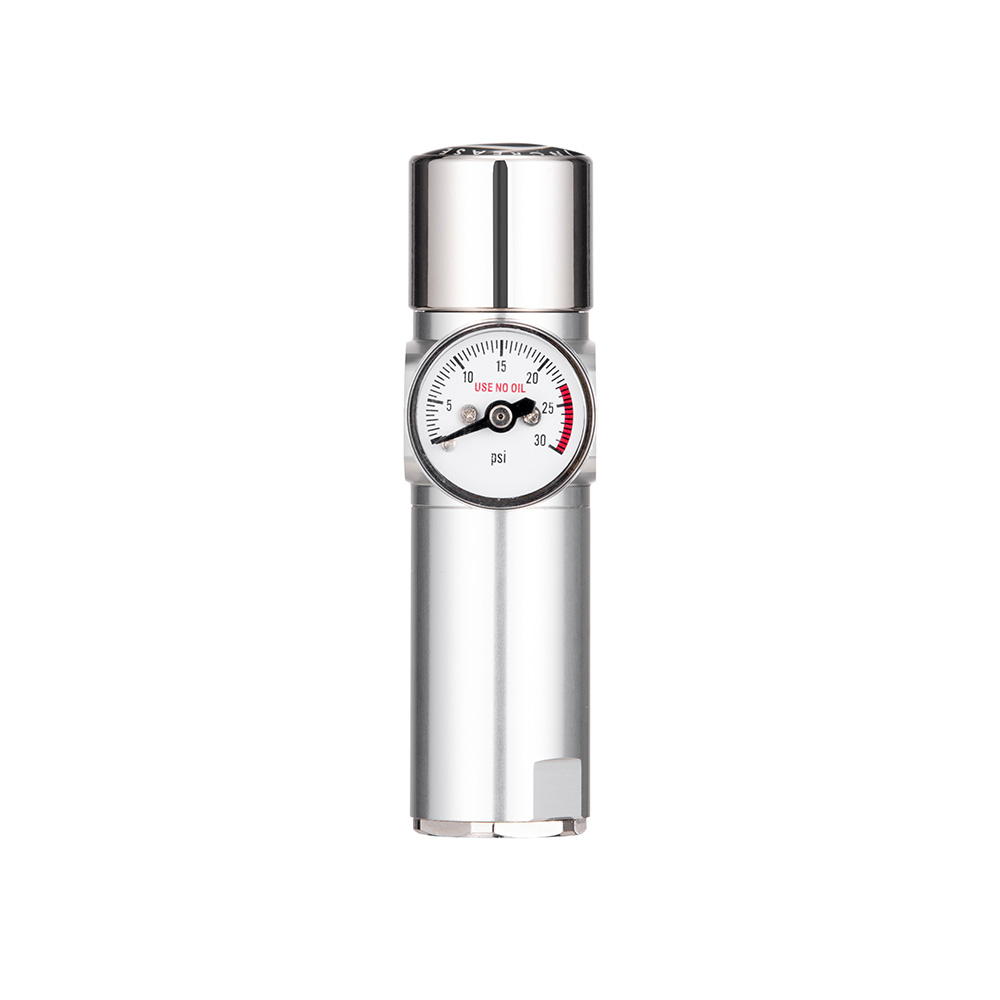

Reliable Beer CO2 Regulator for Draft Dispensing SystemsBuilt for beverage distribution, this regulator delivers steady pressure to prevent over-foaming. Lightweight and portable, it features leak-proof puncture technology and is compatible with various cylinders.View Product →

The application-first philosophy in these designs shows up in the shape, the gauge placement, and the adjustment knob. You can see this in the way Noursun organizes its product lines by application rather than by a single technical spec. Their approach puts the user’s real operating conditions at the center of the regulator design, which is a useful starting point when you are selecting a unit for an unfamiliar environment.

Key Specifications That Define Real-World Performance

When you open a regulator datasheet, the numbers look straightforward, but they translate directly into behavior. Here are the spec values that matter most and how they impact the way the regulator works.

• Maximum inlet pressure: The highest pressure the body can safely see at the inlet port. If this is exceeded in the field, the diaphragm and seat can deform even if they do not burst immediately.
• Outlet pressure range: The minimum and maximum set points you can dial in. A regulator with a 0–50 psi range will be much harder to fine-tune at 10 psi than one with a 0–30 psi range, because the same screw movement covers a narrower band.
• Flow capacity (Cv or SCFM): This tells you how much gas the regulator can pass at a given pressure drop. Choosing a regulator with too low a Cv will starve the downstream equipment, causing a pressure sag under load.
• Regulation accuracy: Often quoted as a percentage of set pressure. A spec of ±1% means the outlet will stay inside 0.5 psi at 50 psi, which is important for processes with tight tolerances.
• Response time: Not always listed, but important for systems with rapid flow changes. A slow regulator can cause a “hunting” effect, where the pressure oscillates around the set point.

A practical example: in a sparkling water system, the regulator must sustain about 45 psi to maintain an average carbonation level. If the selected regulator has a maximum inlet of only 500 psi and the beverage cylinder is filled to 900 psi, the regulator will overwork from day one, leading to premature diaphragm failure. Matching the inlet rating to your actual cylinder refill pressure is not optional.

If you are not sure how to translate these numbers into your own setup, Noursun’s application guidance takes you through the selection logic by use case, which can save a lot of trial and error in the field.

Five Warning Signs Your Regulator Is Losing Performance

A pressure regulator rarely fails all at once. It usually degrades slowly, and by the time the downstream process is visibly affected, the regulator has already been out of spec for a while. Watch for these five signs.

1. Outlet pressure creeps upward. This is the most common symptom of a leaking seat or a worn poppet. The regulator cannot close the valve fully, so gas continues to bleed through even when the outlet is at the set point.
2. The adjustment knob has become very hard to turn. This often indicates a frozen or dirty diaphragm, especially in CO2 systems where moisture can create ice buildup around the regulator body.
3. The gauge needle vibrates or oscillates continuously. If the inlet pressure is stable but the outlet gauge is dancing, the regulator is likely under-sized for the flow rate, or the spring has become soft and cannot provide a stable reference force.
4. You smell gas or hear a faint hiss. A leaking diaphragm or a damaged seat will let gas pass around the valve assembly. In a sealed environment like a closed cabinet, that leak can raise the ambient pressure and create a safety concern.
5. The outlet pressure drops when load increases. A healthy regulator should hold its set point under a normal flow demand. If connected equipment starts pulling more flow and the pressure falls off by more than 5–10 psi, the regulator’s flow capacity is too low or the internal passages are partially blocked.

In most cases, the correct response is not to adjust the spring further. Instead, the regulator needs a rebuild kit with a new diaphragm, seat, and spring, or a replacement with a unit that matches the real flow and inlet conditions. Over-tightening the adjustment screw to compensate for degradation can cause the regulator to over-pressurize the downstream side once the worn part finally lets go.

Why Manufacturing Quality and Tolerance Matter

The mechanical theory of a pressure regulator is simple, but the practical difference between a mediocre unit and an excellent one is manufacturing tolerance. A tiny variation in the diaphragm’s effective area or in the spring’s force rate can shift the outlet pressure by 1–2 psi, which is the difference between a perfect pour and a foamy one in beer dispensing.

Noursun, the company behind many of the regulator designs referenced in this guide, states in its own company profile that it invests about 7% of annual revenue in R&D and holds more than 35 patents, filing roughly 10 new patent applications each year. (Source: Noursun company profile, /about/). This investment shows up in the consistency of the critical parts that control the force balance: the diaphragm material thickness, the spring wire diameter, and the seat surface finish.

When those parts are not held to tight tolerances, you can see the results in the same application: one regulator may hold 45 psi perfectly, while another from the same batch runs 47 psi and requires a different adjustment position. That kind of inconsistency creates headaches in production lines where every soda maker has to produce identical carbonation levels. The fix is not a better adjustment knob; it is better machining and stricter quality control during assembly.

Frequently Asked Questions

Do pressure regulators work with liquids as well as gases?

Yes, liquid pressure regulators use the same principle, but the fluid forces and spring rates are often different. Most industrial regulators are engineered for a specific medium, so a CO2 gas regulator should not be used on water without checking the standard materials and seat compatibility. Gas regulators generally rely on the compression of gas and the resulting pressure drop, while liquid regulators must handle incompressible flow and often need different seal materials to prevent weeping.

What happens if the inlet pressure is lower than the set outlet pressure?

The regulator cannot add pressure that does not exist. When the inlet pressure falls below the outlet set point, the valve opens as far as possible, but the outlet pressure will simply track the inlet pressure, minus any internal restriction. In a CO2 cylinder, this appears as a rapid drop in carbonation near the end of the tank’s life. That is exactly why dual-stage regulators are preferred in critical processes: the second stage can compensate for the first stage’s decreasing supply pressure until the very end.

How often should a pressure regulator be serviced?

There is no universal interval because the service life depends on gas cleanliness, operating pressure, and use frequency. In a clean, dry compressed air system with a stable inlet, a regulator might run for three to five years without issues. In a dirty CO2 line with lubricant carryover, the internal valve seat can degrade within six months. A practical recommendation is to check the outlet pressure under load every month and to inspect the diaphragm for cracks or deformation whenever you replace a cylinder.

Why does my regulator freeze up?

Freezing is caused by the sudden expansion of gas across the valve seat, which absorbs heat from the local metal parts. The phenomenon is known as the Joule-Thomson cooling effect. If the outlet pressure is significantly lower than the inlet pressure, and the flow rate is high, the regulator body can become cold enough to condense moisture from the air or even form ice. Countermeasures include using a pre-heater, selecting a regulator with larger internal passages to reduce the pressure drop velocity, or installing the regulator so that it is not the coldest part of the gas path.

Can a pressure regulator be adjusted to a different outlet pressure after installation?

Yes, as long as the new set point is within the regulator’s rated range. The adjustment screw changes the spring pre-load, which raises or lowers the force balance point. However, you must always re-check the downstream equipment’s maximum pressure rating before increasing the set point. If you move the set point beyond the range intended for that spring, you may not achieve stable regulation because the spring will either be fully unloaded or fully compressed.

Choosing a gas pressure regulator is not a one-size-fits-all decision. You can narrow the search quickly by answering six questions: what gas are you regulating, what is your inlet pressure, what outlet pressure do you need, how much flow must the regulator deliver, how stable must that delivery stay, and what environment will it live in? Once you have those answers, you can pick a regulator that will not creep, surge, or fail prematurely. Below, we break down each factor with real numbers and product examples so you can make a confident choice.

Start with the Gas Type and Its Inlet Condition

Different gases behave differently across pressure ranges. CO2, for example, can transition from a liquid to a gas inside a cylinder as the temperature changes, which means an unheated regulator can freeze and drop its delivery pressure. Argon is stable but heavier, while compressed air contains moisture that can corrode internal parts if the regulator is not built for it. Your first move is to confirm the gas name, the cylinder pressure at full charge, and whether the cylinder is a high-pressure (2000–3000 psi) or low-pressure (around 300 psi) type.

For a soda water system running on CO2, a regulator with a brass body and a stainless steel seat is a safer bet because it resists the moisture that accompanies CO2 expansion. A purpose-built CO2 unit keeps outlet pressure steady even as the cylinder drains, so you avoid inconsistent carbonation levels between bottles.

Soda Water CO2 Regulator for Consistent CarbonationThis regulator is designed for household carbonation systems, letting you precisely adjust output pressure for preferred fizz levels. Its internal relief and sealing-before-opening mechanisms ensure safe, efficient gas use in compact installations.View Product →

If you work with compressed air, look for an internal filter or a separate moisture trap. For nitrogen or argon, the regulator can be lighter and more compact, but always confirm that the inlet fitting matches your cylinder valve. A mismatch here will cost you a return shipment and downtime.

Define the Pressure Range and Outlet Setpoint

Determine the target outlet pressure. For draft beer, that is usually 12 to 15 psi; for home sparkling water, it can range from 30 to 45 psi; for aquarium CO2, 20 to 30 psi is typical; for paintball tanks, the regulator may need to handle up to 3000 psi inlet and deliver 800 psi to the marker.

The lower the operating pressure, the more important the regulator's low-pressure accuracy becomes. Single-stage regulators are simpler but they output a higher pressure when the cylinder is fresh and lower pressure when it is nearly empty. The difference can be 2–3 psi on a 30 psi setpoint, which is enough to affect carbonation or dosing. If your process tolerates no more than 0.5 psi of drift, you need a dual-stage regulator.

For a dual-stage unit, the first stage drops the incoming pressure to an intermediate level (often around 250–400 psi), and the second stage delivers the precise setpoint. This arrangement keeps the outlet almost rock-solid from a full cylinder to the last shot of gas.

Dual Stage CO2 Regulator with Manometer for AquariumsA two-stage regulator with dual gauges, relief valve, and bubble counter, compatible with multiple cylinder standards. It delivers stable pressure and precise bubble output, making it ideal for planted tanks and greenhouses.View Product →

Match the Flow Rate to Your Equipment's Demand

Flow rate is often the most underestimated factor. A regulator can have perfect pressure control at 0.1 cubic feet per minute but starve your equipment at 1.0 CFM. Match the regulator's maximum flow capacity to your highest instantaneous demand.

• A single-line carbonation system with one beverage tap needs about 0.5 CFM at 30 psi.
• A multi-tap bar with six lines can demand 2.0 CFM or more.
• A 5-gallon kegerator with a 2.5 lb CO2 cylinder needs the regulator to pass gas as the liquid level in the cylinder drops.

Undersizing leads to pressure drop at the moment of draw, which causes flat beer or weakly carbonated water. When you compare models, ask for the rated CFM at the outlet pressure you plan to use, not just the maximum inlet pressure. Also check the regulator's Cv value if the manufacturer publishes it. A higher Cv indicates a larger internal passage and a better ability to handle surges.

Evaluate Pressure Stability and Gauge Visibility

Pressure stability is what separates a good regulator from a great one. Look for a regulator with a diaphragm that responds quickly to changes in outlet demand, and a spring that is designed for the specific outlet range. Do not use a 100 psi spring to deliver 12 psi—the adjustment will be coarse and unreliable.

A dual-gauge regulator shows both cylinder pressure and delivery pressure, which lets you know how much gas is left and whether the outlet is holding steady. For aquarium applications, a 0–50 psi delivery gauge is ideal; for draft beer, a 0–30 psi gauge is easier to read at a glance.

A built-in manometer is particularly useful when you are running a dual-stage regulator, because you can instantly see the intermediate pressure and the output pressure. This diagnostic capability saves time when you are tuning a new installation or troubleshooting a system that is not performing as expected.

Choose the Right Materials and Connection Style

Materials affect both durable life and gas compatibility. For dry gases like argon, a zinc alloy or aluminum body works well. For CO2 with the risk of condensation, brass or stainless steel wetted parts are more reliable. For food and beverage environments, avoid regulators with oil-based lubricants in the path of the gas.

Connection size and thread type are just as important. Common regulators use 1/4 inch NPT or BSP, while the cylinder connection may be CGA-320, CGA-580, or DIN. Always take a photo of your existing cylinder and regulator connection before ordering. Mismatched threads are the number one cause of regulator returns.

Think About the Application Environment

Where the regulator sits matters. In a home carbonation cabinet, look for a compact regulator that fits under the counter. In a brewery, you might need wall-mounted brackets. In an aquarium room, humidity can corrode gauges, so choose a regulator with a sealed gauge. In a paintball tank bag, the regulator should be shock-resistant and light.

A good example is a mini CO2 regulator, which is engineered for small spaces like soda makers and beverage dispensers. It gives you the same pressure control in a footprint that fits neatly inside a kitchen cabinet or a product enclosure. For a full view of how these regulators are applied in a range of settings, you can look at our application pages.

Mini CO2 Regulator for Portable Kegs and DispensersCompact and lightweight, this regulator fits small kegs and cartridges for beer or soda dispensing. It provides steady pressure and flow, minimizing foam, and offers adjustable output with optional gauge and cartridge holder.View Product →

If the regulator will be exposed to vibration, tighten the adjustment screw with a locking nut or use a model with a locking feature. If it will operate in a hot environment, verify that the diaphragm material can handle the temperature at full load.

Single-Stage vs. Dual-Stage Regulators

Single-stage and dual-stage regulators solve different problems. A single-stage regulator reduces cylinder pressure to delivery pressure in one step. It is compact and inexpensive, but its outlet pressure changes as the cylinder empties. A dual-stage regulator uses two internal stages: the first stage drops high pressure to an intermediate pressure, and the second stage precisely controls the output.

If you have multiple regulators on the same high-pressure line, ensure that each regulator has sufficient upstream pressure to feed the first stage. A die-cylinder regulator may operate from 300 psi to a full 2000 psi, but a low-pressure line will not. Always check the minimum inlet pressure specification.

Common Selection Mistakes and Their True Cost

Three mistakes cause most regulator problems:

• Ignoring flow demand. Ordering a regulator by pressure alone ignores the CFM needed, leading to pressure drops during use.
• Mixing gases. Running a regulator originally for argon on a CO2 line can damage the internal valve seat because the materials are not compatible.
• Skipping pressure stability checks. If you do not test the regulator across a cylinder's full pressure range, you will only find the drift mid-keg.

The cost of these mistakes can be measured in product waste, setup time, and replacement parts. A single miscalculated CO2 system in a bar can waste a full keg of beer every week when the pressure drifts by 3 psi. In an aquarium, the same drift may cause pH fluctuations that stress fish and plants.

How to Validate a Regulator Before You Buy

Before you buy, request the regulator's performance curve. Look for data on outlet pressure across the inlet range, hysteresis, and temperature behavior. Run a simple leak test with soapy water on the connections. Verify that adjustment screws are stable and do not creep under vibration.

A good supplier will explain the limit of the diaphragm and the recommended service intervals. For a B2B relationship, it is also useful to ask how the factory handles custom fittings and whether they offer pilot samples. You can learn more about our engineering background on our About page.

If the regulator will be used for a craft beverage application, ask about the internal smoothness and whether the factory performs a 100% leak check before shipment. Also, ask how the regulator's performance changes after 50,000 cycles, because that is often where a low-quality spring will begin to shift.

How Noursun's Product Lineup Helps You Narrow the Choice

Once you have defined the six variables above, you can map them to the existing product family:

• For home sparkling water: RP06, RP07, RP08, RP12, RP13, RP26, RP30.
• For draft beer: RP20.
• For aquarium or hydroponics: RP14, RP23, RP25, RP31, RP32.
• For paintball: RP24.
• For compact soda makers and beverage dispensers: RP02.

This map is only a starting point. In practice, every installation has its own quirks, and an engineered solution often involves adjusting a standard regulator's spring range, gauge scale, or inlet fitting. That is why it is better to talk with someone who understands the real-world behavior of gas pressure rather than simply matching a model number.

Frequently Asked Questions About Choosing a Gas Pressure Regulator

What is the difference between a single-stage and a dual-stage regulator?

A single-stage regulator reduces the full cylinder pressure to the delivery pressure in one step. A dual-stage regulator does it in two steps. The dual-stage design maintains a more constant outlet pressure as the cylinder empties, which is critical for processes that cannot tolerate pressure drift.

How do I know what outlet pressure my soda water system needs?

Most home sparkling water makers operate between 30 and 45 psi. Commercial systems may run at 50 psi or higher. Check the manufacturer's recommendation for your specific machine, and always choose a regulator that can be adjusted precisely within that range.

Why does my CO2 regulator freeze up?

When CO2 expands through the regulator, the gas temperature drops rapidly. If the ambient humidity is high, moisture can condense and freeze on the regulator body. Moving to a dual-stage regulator or increasing the distance between the cylinder and the regulator can reduce freezing because the pressure drop is spread over two stages.

Can I use an argon regulator for nitrogen?

Generally yes, because both are inert gases and do not react with common regulator materials. However, you must verify the inlet connection and the pressure rating. Nitrogen cylinders often use a different valve than argon, so the regulator inlet fitting must match the cylinder model.

What size connections do most regulators use?

The most common tool-side connection is 1/4 inch NPT or 1/4 inch BSP. The cylinder-side connection depends on the gas and the country, with common options being CGA-320, CGA-580, and DIN. Always confirm both ends before placing an order.

No matter what you regulate, the same decision framework will help you choose. Start with the gas, define the pressures, calculate the flow, verify stability, check materials, and match the environment. If you have questions about a specific application, a quick conversation with an engineering team will save you weeks of trial and error.

Back Pressure Regulator vs Relief Valve: The Direct Answer

A back pressure regulator (BPR) maintains a pre-set pressure in the line upstream of the valve by modulating flow on a continuous basis. A relief valve opens only when system pressure exceeds a pre-set limit and vents fluid or gas to prevent overpressure. The core difference is function: one is a control device, the other is a protective device.

This is why the two are not interchangeable, even though both respond to pressure. A back pressure regulator works to keep pressure at a working point, such as 35 psi, by slowly opening and closing in response to load changes. A relief valve sits idle at 35 psi, then snaps open when a pressure spike pushes it past its setpoint, and reseats once the danger clears.

Choosing the wrong one produces a different set of failures. Use a relief valve where a back pressure regulator is needed, and process pressure will drift, affecting pump performance, spray density, or gas blanketing. Use a back pressure regulator where a relief valve is needed, and there is no safety margin if upstream pressure rises beyond the equipment rating.

This guide walks through how each device works, where they apply, and how to know which one your system requires. Learn more about Noursun's pressure control expertise.

What Is a Back Pressure Regulator?

A back pressure regulator is a pressure control valve that maintains a constant pressure on its inlet side. It does this by creating a controlled restriction to flow. If the upstream pressure tries to rise above the setpoint, the valve opens wider to allow more flow through, which brings the pressure back down. If the upstream pressure drops below the setpoint, the valve throttles closed, building pressure back up.

In practice, a BPR is typically installed downstream of the pressure source, such as a pump, a gas cylinder, or a reactor vessel, and it holds pressure in the segment of pipe just before it. Because of this, the BPR is sometimes called a pressure holding valve or a backhold regulator.

The BPR uses a spring chamber as the internal reference. The spring force is set to a specific value and opposes the upstream pressure acting on the valve diaphragm. When upstream pressure exceeds the spring force, the diaphragm is pushed upward and the valve opens. When upstream pressure drops, the spring pushes the diaphragm back down and the valve closes. This cycle of micro-adjustments maintains the desired pressure.

Common applications for back pressure regulators include:

• Maintaining a constant pressure at the discharge of a positive displacement pump, which prevents excessive wear on the pump and seals.
• Controlling the pressure in gas blanketing systems, where the BPR holds a small positive pressure above the liquid surface in a tank.
• Managing the pressure of a reactor or vessel, where a constant back pressure affects reaction efficiency and product consistency.
• As a bypass element in CO2 or argon delivery lines, ensuring that the supply pressure remains stable regardless of downstream demand.

What Is a Relief Valve?

A relief valve is an automatic safety device that opens to release fluid or gas when the pressure in a system exceeds a pre-set limit. It is normally closed and stays closed during normal operation. When pressure rises to the setpoint, the valve opens and vents the excess pressure through a discharge port. It reseats once the pressure returns to a safe level.

The function of a relief valve is entirely different from that of a back pressure regulator. A relief valve is not designed to throttle flow or maintain a process setpoint. It is designed to protect the system from overpressure damage. Its job is simple: open when required, relieve, and close when the condition has passed.

The spring in a relief valve pushes the disc or poppet onto the seat. System pressure pushes in the opposite direction. When system pressure becomes high enough to overcome the spring force, the disc lifts off the seat and excess pressure is released. The valve is sized so that its opening performance is quick, with the disc moving from closed to full lift in a matter of milliseconds for most designs.

A key performance parameter of a relief valve is its blowdown, which is the difference between the pressure at which the valve starts to open and the pressure at which it fully reseats.

Typical applications for relief valves include:

• Protecting pressure vessels and piping from overpressure due to thermal expansion, equipment failure, or process upset conditions.
• Safeguarding pump or compressor discharge lines from dead-heading conditions.
• Providing overpressure relief for gas distribution lines after a pressure-reducing regulator.
• Serving as a backup protection layer in beverage dispensing systems where a CO2 cylinder regulator could fail in the open position.

Custom Safety Valve for Pressure Relief and System ProtectionExplore how safety valves are rated and matched to system requirements, ensuring reliable overpressure protection in gas, liquid, and mixed-phase applications.View Product →

Key Differences Between Back Pressure Regulator and Relief Valve

The two devices come from different engineering philosophies. One is born from process control requirements, the other from safety considerations. The table below summarizes the most practical distinctions.

The fastest way to tell the two apart is to ask: does this component actively hold a pressure setpoint while the process runs, or does it wait for an abnormal condition and then open? If the first, it is a back pressure regulator. If the second, it is a relief valve.

How Each Device Behaves in Real Operating Conditions

Back Pressure Regulator Performance Characteristics

A back pressure regulator is designed to be in continuous motion. Its diaphragm and spring are constantly rebalancing as the system load changes. In a well-sized BPR, the deviation from the setpoint will be small. For example, a high-quality regulator might maintain its setpoint within 1 percent of full scale, even as the flow rate varies over a 10:1 turndown range.

This characteristic is what makes a BPR appropriate for processes where pressure stability is directly tied to production quality. In a spray coating application, a 2 psi variation in nozzle pressure can alter droplet size distribution. A BPR prevents that variation from occurring.

Relief Valve Performance Characteristics

A relief valve is designed to be binary in its behavior: mostly closed, and then fully open. The transition happens quickly, in a time frame that can be less than 50 milliseconds for small gas systems, because the technology relies on a spring-loaded disc that lifts off its seat once pressure force overcomes the spring constant.

After the relief event, the valve does not close at the same pressure as it opened. It resets at a lower pressure. This difference is blowdown, and for most spring-loaded relief valves it falls in the range of 10 to 15 percent of set pressure. If a valve is set at 100 psi, it might open at exactly 100 psi and reseat at about 85 to 90 psi.

This gap exists to prevent the valve from rapidly cycling or chattering when the pressure is right at the setpoint. The blowdown provides a margin of stability.

When to Use Each Device

If your requirement is to maintain a constant operating pressure in a line, a back pressure regulator is the correct component. This applies to any scenario where upstream pressure fluctuates and the process depends on that pressure being held steady. Pump discharge pressure control, tank blanketing pressure, and gas header pressure stabilization all fall into this category.

If your requirement is to prevent equipment from being damaged by overpressure, a relief valve is the correct component. This applies to pressure vessels, heat exchangers, piping, and any component whose maximum allowable working pressure could be exceeded during a process upset. A relief valve is a safety measure, not a control measure.

In many real systems, both devices are present and perform separate roles. A typical CO2 beverage line might have a pressure-reducing regulator at the cylinder, a back pressure regulator to stabilize pressure at the carbonation point, and a relief valve downstream of the pressure-reducing regulator to protect the line if the regulator fails. This arrangement demonstrates that control and protection are complementary functions.

Custom Soda Water CO2 Regulator for Carbonation ControlLearn how this regulator precisely adjusts output pressure for consistent carbonation, with safety features and compact design suited for household and commercial use.View Product →

Key Selection Factors

• Setpoint pressure: Both devices are available in ranges from a few psi to several hundred psi. Specify the exact operating point and the acceptable deviation around it.
• Flow rate: Back pressure regulators need to handle the full expected flow range without losing setpoint accuracy. Relief valves need to pass the maximum overpressure flow without excessive pressure rise.
• Media compatibility: Wetted materials must be compatible with the gas or liquid. For CO2 service, stainless steel and PTFE are common choices to prevent corrosion and ensure clean operation.
• Accuracy requirement: If the process tolerance is tight, a back pressure regulator with a precision spring or pilot-operated design will hold a tighter window than a simple direct-acting model.
• Response speed: Relief valves are preferred for sudden spike protection, while back pressure regulators handle slow, continuous control.

For many gas delivery applications, especially where pressure needs to be reduced from a cylinder to a working pressure, a pressure-reducing regulator is used instead of a back pressure regulator. This is because the task is to maintain a constant downstream pressure rather than upstream pressure. Explore Noursun's application guides to see how pressure-reducing regulators are used across beverage, hydroponics, and industrial gas systems.

Common Misconceptions and Selection Pitfalls

Engineers and technicians often confuse the two for understandable reasons. Here are the most common misconceptions.

Misconception 1: A relief valve maintains system pressure

It does not. A relief valve only sets the maximum pressure that a system can tolerate. It does not hold a process pressure at a setpoint. If you want pressure maintained at 40 psi, you need a back pressure regulator or a pressure-reducing regulator, not a relief valve set at 40 psi. The relief valve will not act until pressure exceeds 40 psi, which means the process pressure will be uncontrolled below that point.

Misconception 2: A back pressure regulator provides overpressure safety

A BPR can provide some protection in a limited sense, but it is not engineered for the snap-action response that a relief valve provides. The BPR will slowly open as pressure rises, but a slow opening may not provide adequate protection against a positive displacement pump deadhead or a thermal expansion scenario. A relief valve is the only device intended for that specific job.

Misconception 3: Either component can be used for pressure control

They cannot be swapped. As a control device, the BPR holds a setpoint. As a safety device, the relief valve protects against overpressure. Selecting one based on availability or cost is a common reason for system failures.

Frequently Asked Questions

Final Takeaway

The back pressure regulator and the relief valve are related concepts and are often discussed together, but they are not interchangeable. A back pressure regulator maintains a set pressure through continuous modulation. A relief valve protects system components from dangerous overpressure by opening only when needed.

The quickest way to remember the difference is this: the back pressure regulator holds the process in a comfortable band, and the relief valve cuts in only during a spike. If you can say which one you need and why, you are most of the way to a properly designed pressure control system.

Noursun Regulators is a manufacturer of gas pressure control components and has been producing pressure regulators since 2012, serving industries such as beverage dispensing, hydroponics, and soda systems. Their product range includes CO2 pressure regulators, aquarium regulators, and safety valves for industrial and consumer applications.
