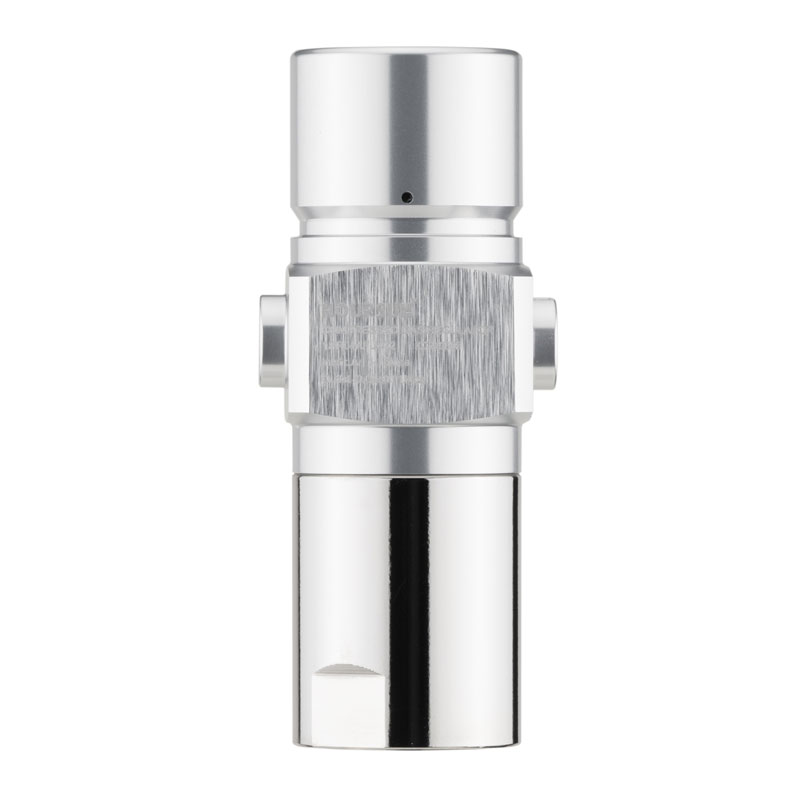

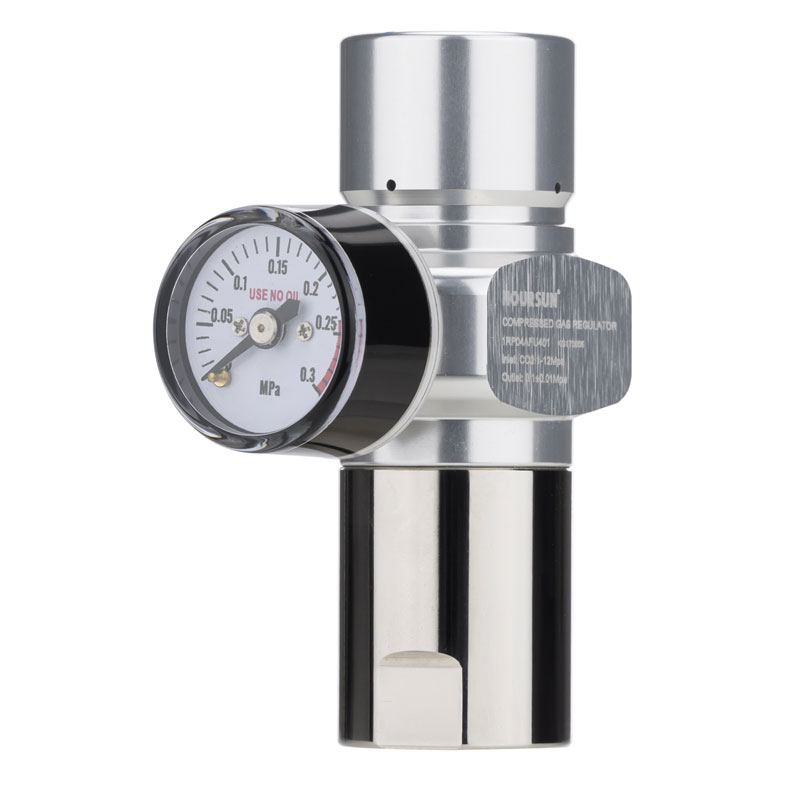

RP04-Dual Stage Argon Regulator
Engineered for applications demanding a higher level of precision than the RP02. It is a perfect solution for the most demanding tasks, such as wine dispensing (with an error of less than 1cc), and is also equally adept for laboratory gas analysis and similar applications.
Ultra-high precision in both output pressure and flow stability.
Leak-free cartridge puncture technology for maximum gas utilization.
Integrated gas overflow orifices relief mechanism to ensure user safety in all operating environments.
| Material | ▲ | Aluminium | ||
| Medium | N2、CO2、Ar | |||
| Operating Temperature | -5℃~43℃ | |||
| Max. Working Pressure | 12Mpa | |||
| Proof Pressure | 30Mpa | |||
| Output Pressure | ▲ | 0.05~0.4Mpa | ||
| Output Pressure Accuracy | ±0.01MPa | |||
| Pressure Indication | Axial pressure gauge | |||
| Indication Accuracy | Class IV (EN 837-1) | |||
| Inlet Port | ▲ | 3/8-24UNF / 5/8-18UNF | ||
| Outlet Port | ▲ | M8*0.75 / G1/8 | ||
| Relief Pressure(LP side) | Overflow orifice relief mechanism | |||
| Net Weight | 113g | |||
| (▲ marked parts are standard parameters available for customization.) | ||||
| Material | ▲ | Aluminum | ||
| Medium | N2、CO2、Ar | |||
| Operating Temperature | -5℃~43℃ | |||
| Max. Working Pressure | 12Mpa | |||
| Proof Pressure | 30Mpa | |||
| Output Pressure | ▲ | 0.05Mpa≤Preset pressure≤0.4Mpa | ||
| Output Pressure Accuracy | ±0.01MPa | |||
| Inlet Port | ▲ | 3/8-24UNF / 5/8-18UNF | ||
| Outlet Port | ▲ | M8*0.75 / M6 | ||
| Relief Pressure(LP side) | Overflow orifice relief mechanism | |||
| Net Weight | 140g | |||
| (▲ marked parts are standard parameters available for customization.) | ||||

* Ordering code = Model +Pressure Setting+ "-" +Outlet Pressure+"-" + Inlet+"-"+Outlet+"-"+Relief Mechanism
Example: RP04AF-060-U1-M8-1
