RP14-Aquarium Pressure Regulator

Application

A compact CO2 regulator for small aquariums, with a pressure regulator, needle valve, and bubble counter. It has a 5/8-18UNF inlet for 74g cartridges. Optional EU, US, or Japanese adapters are available.

Key Features

Equipped with an internal pressure gauge.
Non-leaking cylinder puncture ensures user safety when tightening the cylinder and achieves maximum gas utilization.
Bubble output error is within ±2 bubbles per minute.
360° rotatable outflow interface allows free adjustment of the outflow direction.

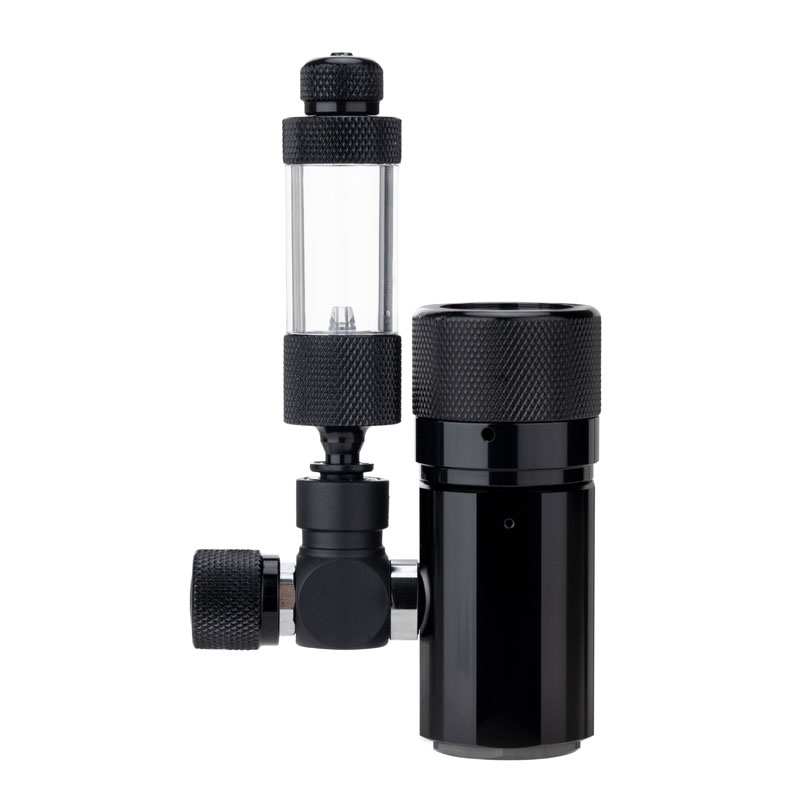

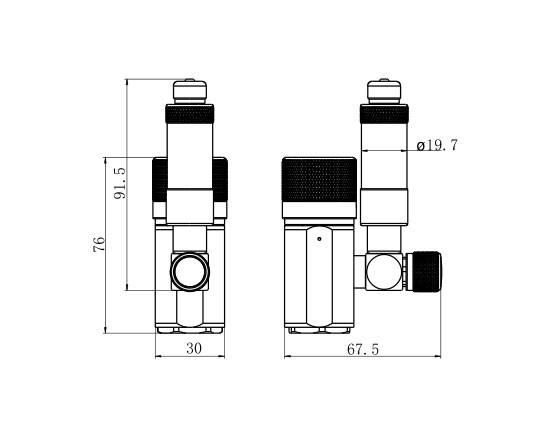

RP14-no solenoid valve

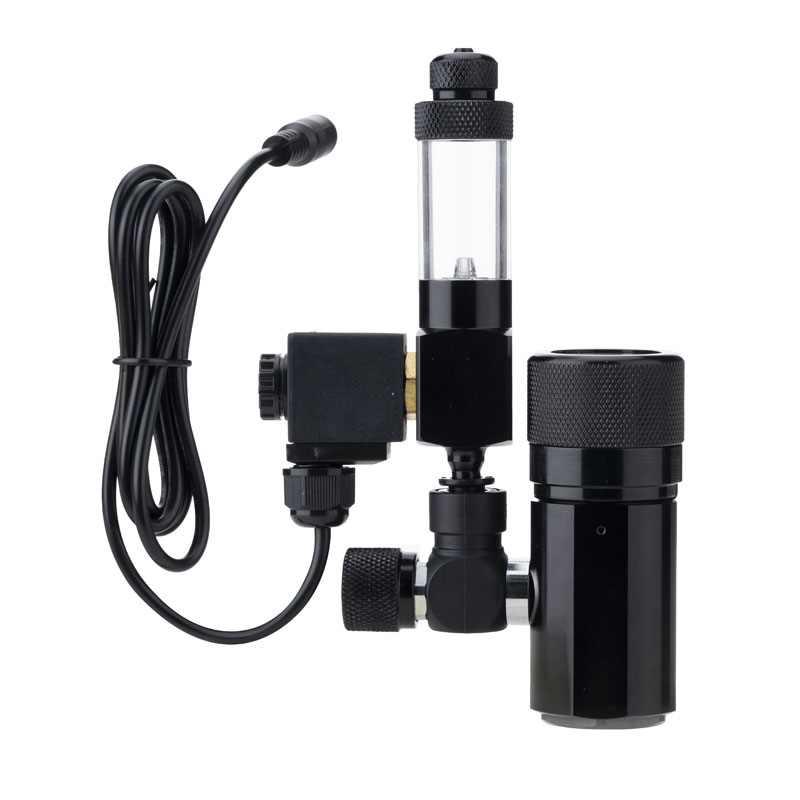

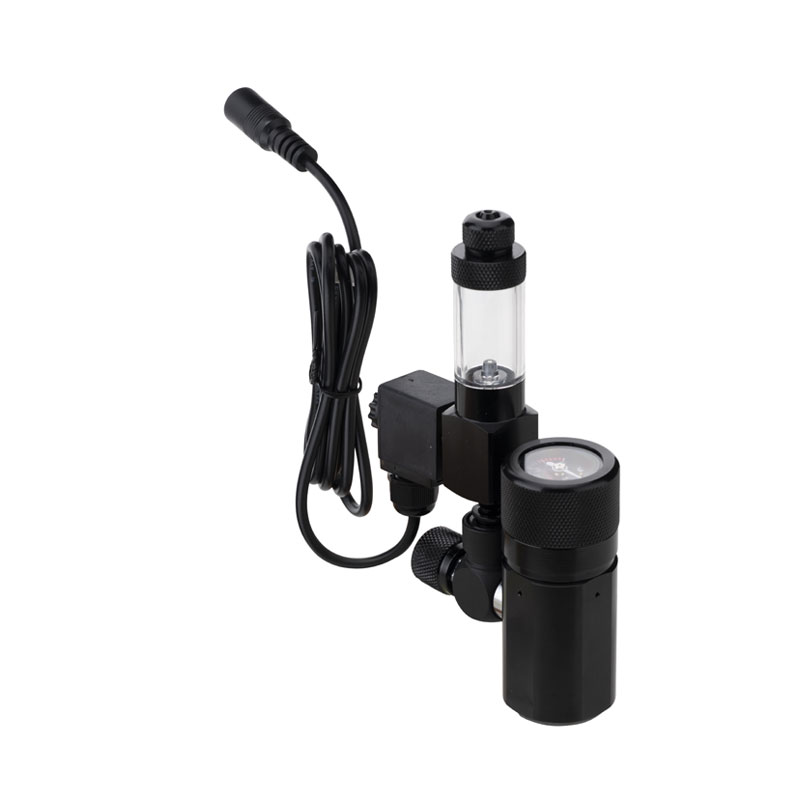

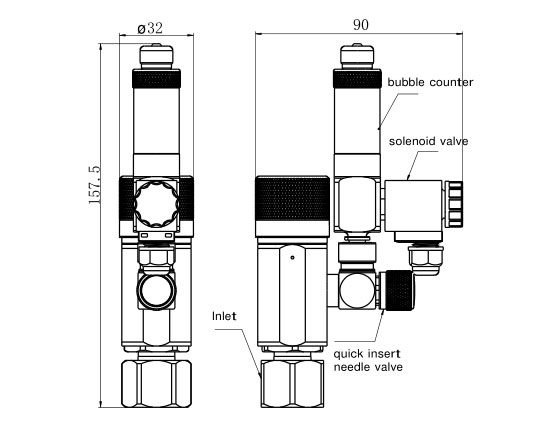

RP14-with solenoid valve
Product Images & Specifications
      • RP14
      Material ▲ Aluminum
      Medium CO2
      Operating Temperature -5℃～43℃
      Max. Working Pressure 12Mpa
      Proof Pressure 30Mpa
      Output Pressure ▲ 0.40Mpa
      Output Pressure Accuracy ±0.03MPa
      Pressure Indication ▲ Push-in type pressure gauge
      Indication Accuracy Class IV (EN 837-1)
      Inlet Port ▲  5/8-18UNF
      Outlet Port ▲ G1/8
      Relief Pressure(LP side) Overflow orifice relief mechanism
      Net Weight 274g
      (▲ marked parts are standard parameters available for customization.)

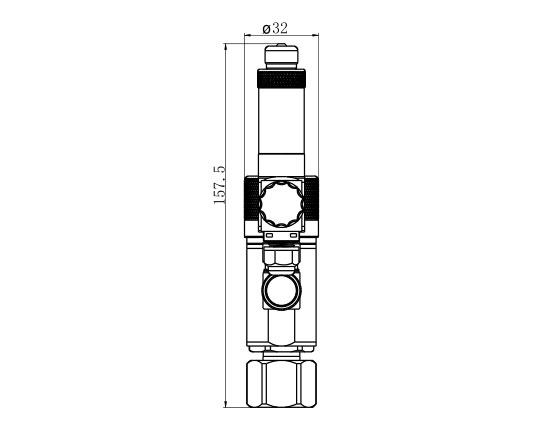

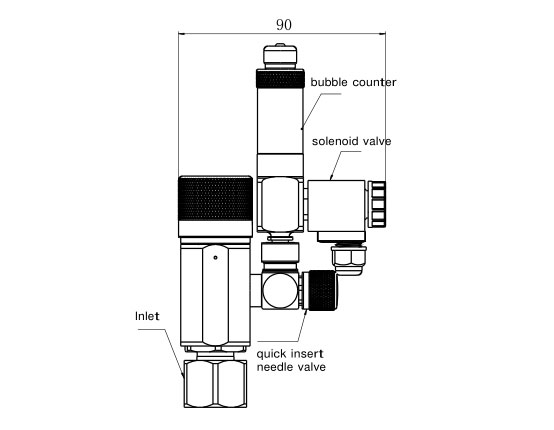

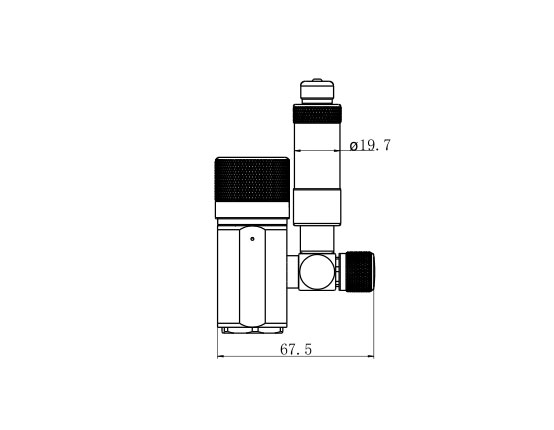

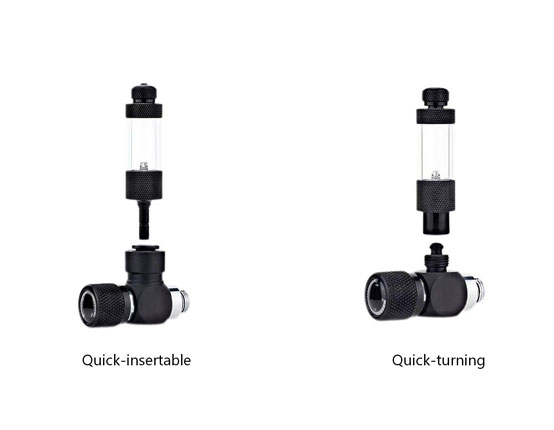

  • RP14
  • RP14
Ordering Code

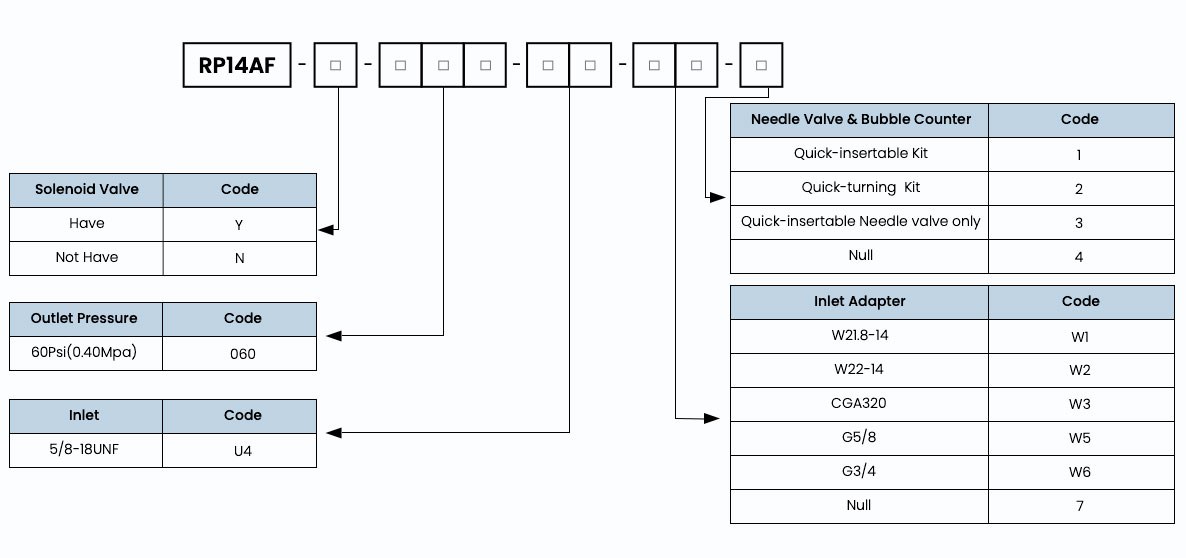

* Ordering code = Model + "-" + Solenoid Valve + "-"+Outlet Pressure+"-"+Inlet+"-" +Inlet Adapter+"-"+  Needle Valve & Bubble Counter

Example: RP14AF-Y-060-U4-W1-1
