RP25-Aquarium Pressure Regulator

Application

Compact CO2 regulator for small aquariums with needle valve, bubble counter, and solenoid valve. Fits 74g cartridges (5/8-18UNF); optional EU/US/JP adapters. Also suitable for mosquito and rat traps.

Key Features

Embedded axial pressure gauge.
5/8-18UNF thread, compatible with 74g cartridges,Multiple inlet adapters.
Leak-proof piercing technology for easy and gas-tight cartridge piercing.
Allows free adjustment of exhaust direction.

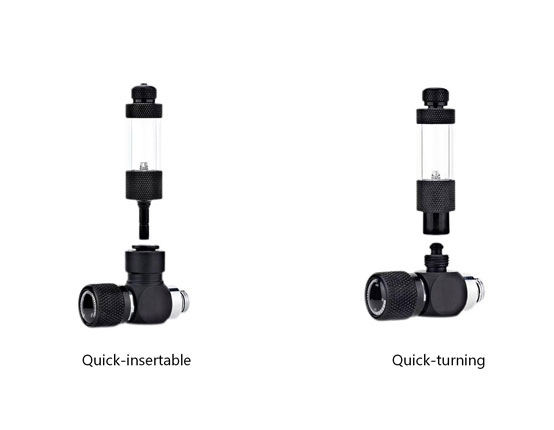

Quick-insert or quick-turn type for multiple counting choices.

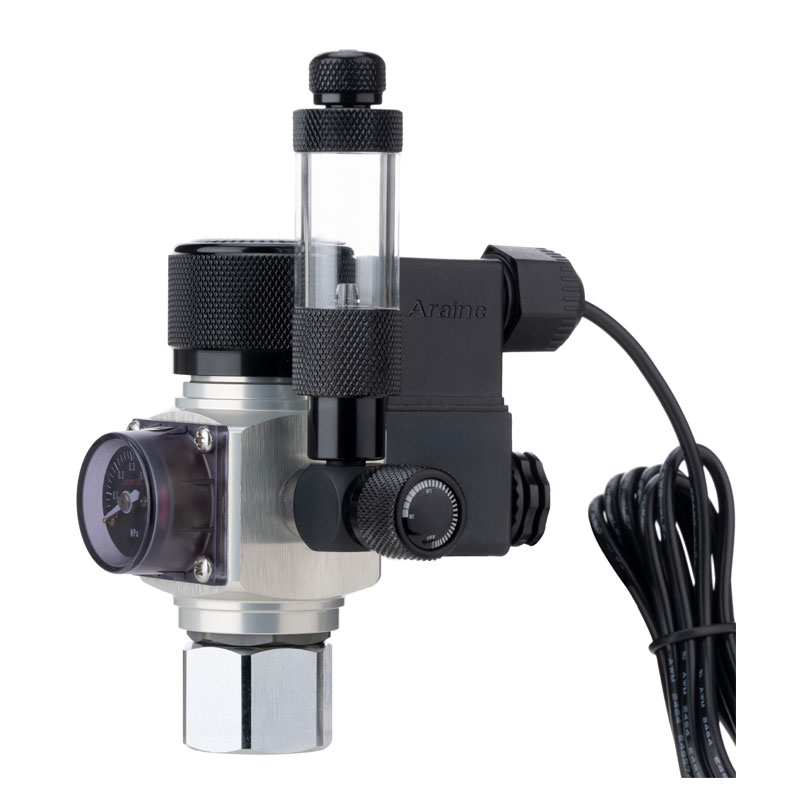

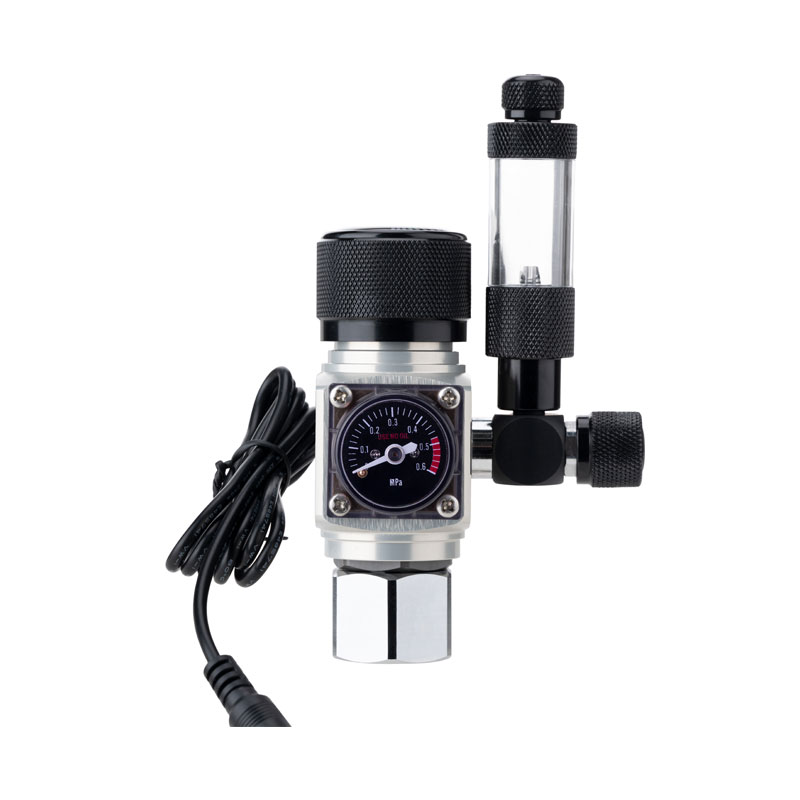

RP25-Aquarium Pressure Regulator

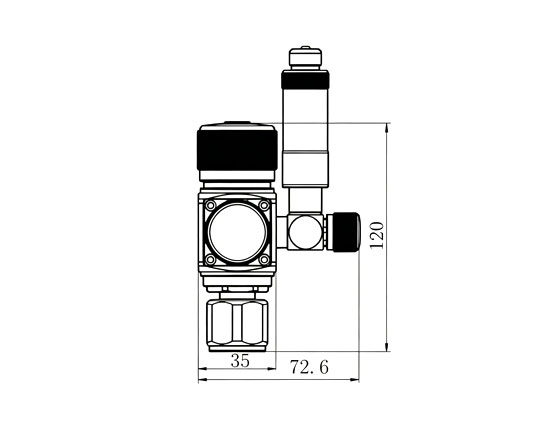

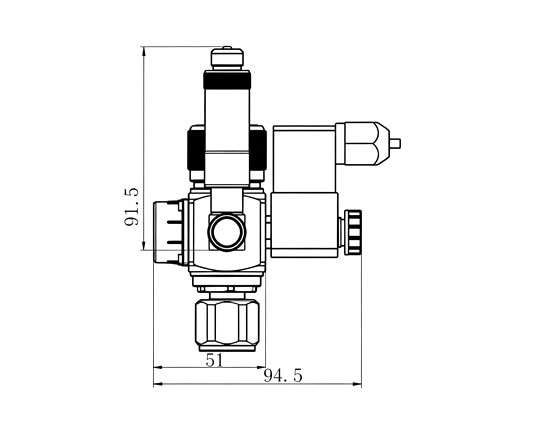

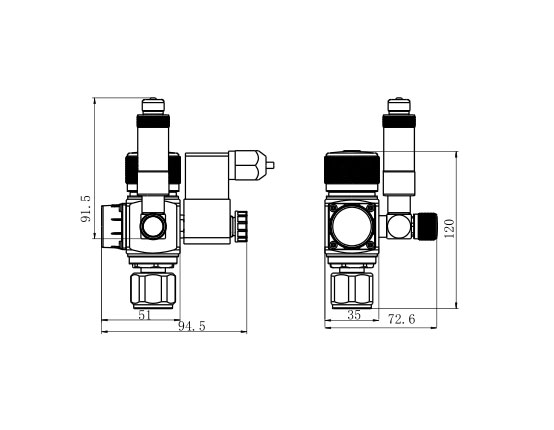

Product Images & Specifications
      • RP25
      Material ▲ Aluminum
      Medium CO2
      Operating Temperature -5℃～43℃
      Max. Working Pressure 12Mpa
      Proof Pressure 30Mpa
      Output Pressure ▲ 0-0.5Mpa
      Output Pressure Accuracy ±0.03MPa
      Pressure Indication ▲ Push-in type pressure gauge
      Indication Accuracy Class IV (EN 837-1)
      Inlet Port ▲  5/8-18UNF
      Outlet Port ▲ G1/8 / 1/8NPT
      Solenoid Valve DC12V 3W,DC connector, IP65, Power Plug
      Net Weight 390g
      (▲ marked parts are standard parameters available for customization.)
  • RP25
  • RP25
Ordering Code

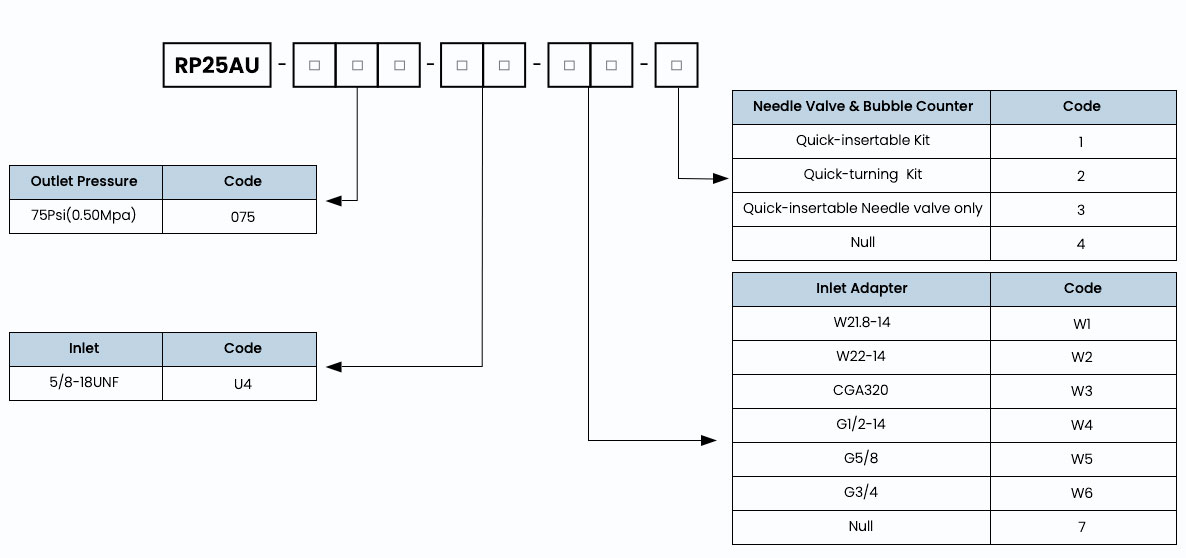

* Ordering code = Model + "-"  + Outlet Pressure+"-"+Inlet+"-" +Inlet Adapter+"-"+  Needle Valve & Bubble Counter

Example: RP25AU-075-U4-W1-1
