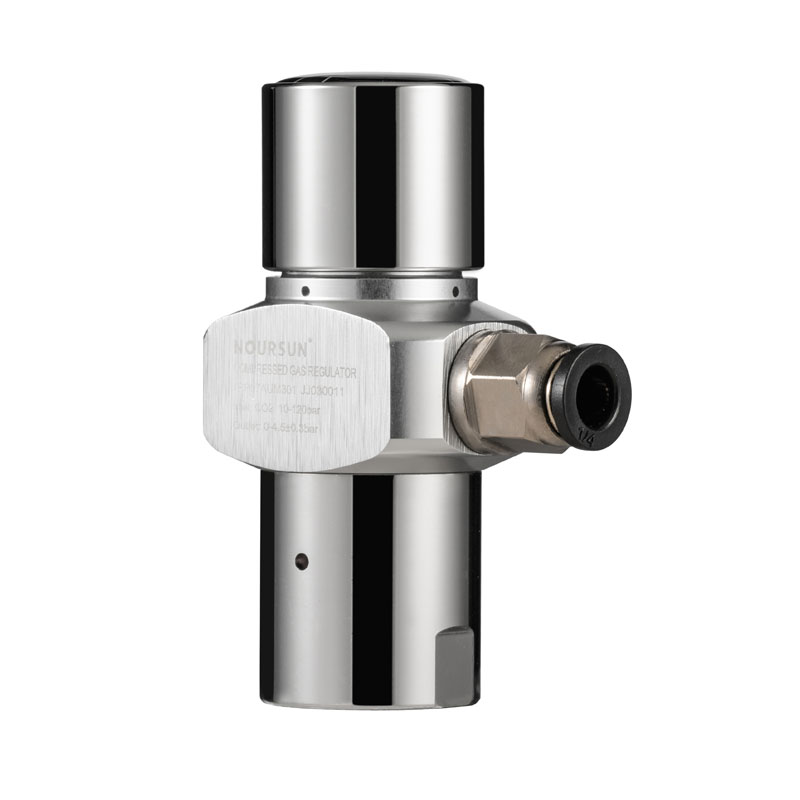

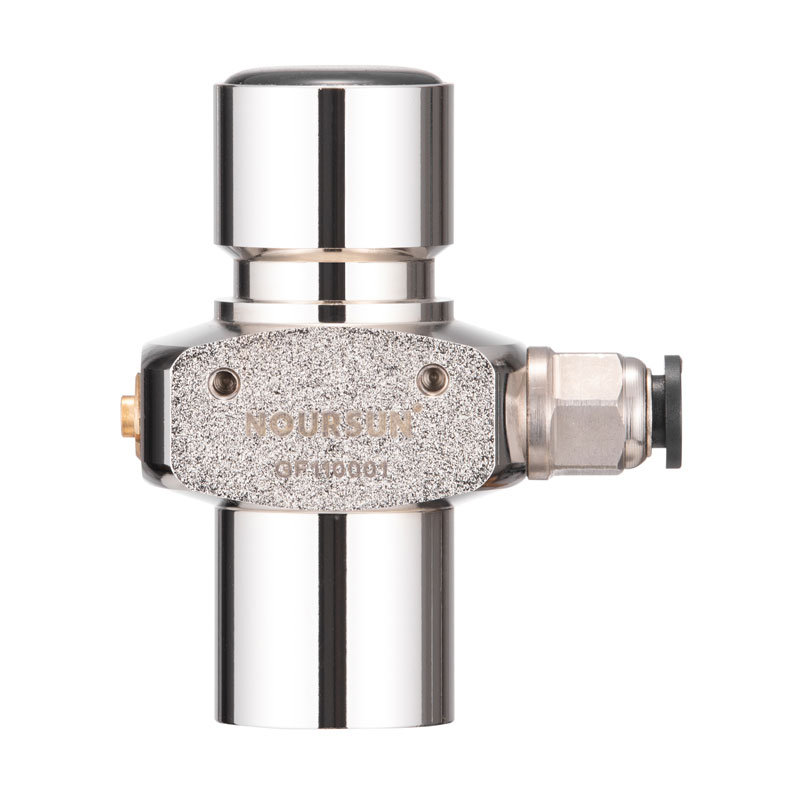

RP07-Soda Water CO2 Regulator
Designed for household carbonation systems, allowing users to precisely adjust the output pressure to create their preferred level of carbonation.
Equipped with overflow orifices relief mechanism for enhanced system and user protection
Sealing-before-Opening mechanism ensures maximum gas utilization
Internal installation allows for a compact and space-saving design
| Material | ▲ | Aluminum | ||
| Medium | CO2 | |||
| Operating Temperature | -5℃～43℃ | |||
| Max.Working Pressure | 12Mpa | |||
| Proof Pressure | 30Mpa | |||
| Output Pressure | ▲ | 0.05～0.55Mpa | ||
| Output Pressure Accuracy | ±0.03MPa | |||
| Pressure Indication | Indicator dial | |||
| Inlet Port | ▲ | TR21×4 / M22×2.5 / ∅21-6ACME-2G | ||
| Outlet Port | ▲ | G1/8 | ||
| Relief Pressure(LP side) | Overflow orifice relief mechanism | |||
| Net Weight | 128.7g | |||
| (▲ marked parts are standard parameters available for customization.) | ||||
| Material | ▲ | Aluminum | ||
| Medium | CO2 | |||
| Operating Temperature | -5℃～43℃ | |||
| Max.Working Pressure | 12Mpa | |||
| Proof Pressure | 30Mpa | |||
| Output Pressure | ▲ | 0.3Mpa≤Preset pressure≤0.55Mpa | ||
| Output Pressure Accuracy | ±0.03MPa | |||
| Inlet Port | ▲ | TR21×4 / M22×2.5 / ∅21-6ACME-2G | ||
| Outlet Port | ▲ | G1/8 | ||
| Relief Pressure(LP side) | Overflow orifice relief mechanism | |||
| Net Weight | 128g | |||
| (▲ marked parts are standard parameters available for customization.) | ||||

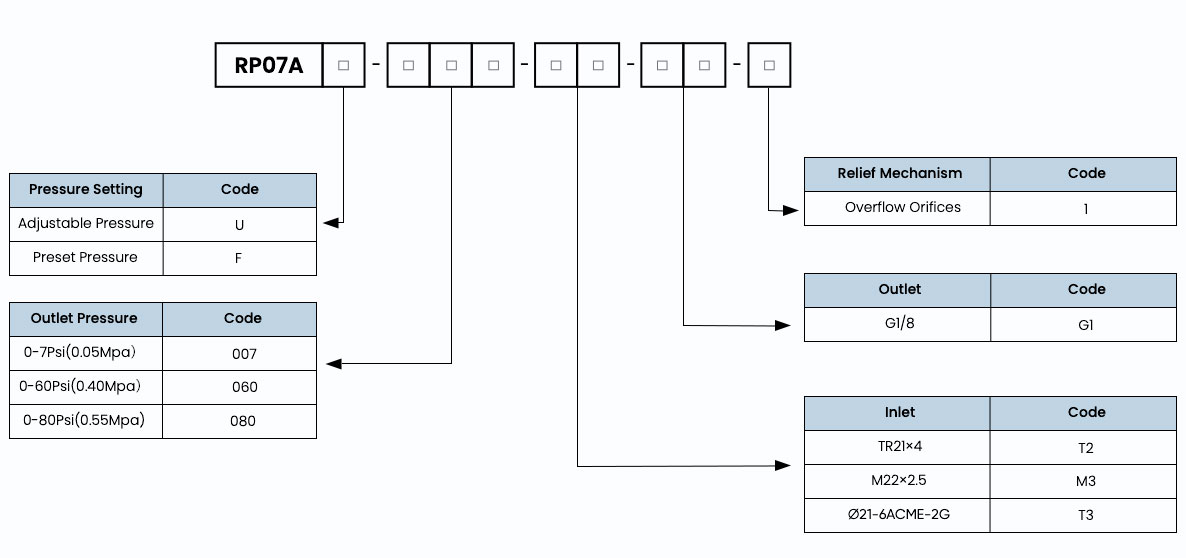

* Ordering code = Model +Pressure Setting+ "-" +Outlet Pressure+"-" + Inlet+"-"+Outlet+"-"+Relief Mechanism
Example: RP07AU-060-T2-G1-1
