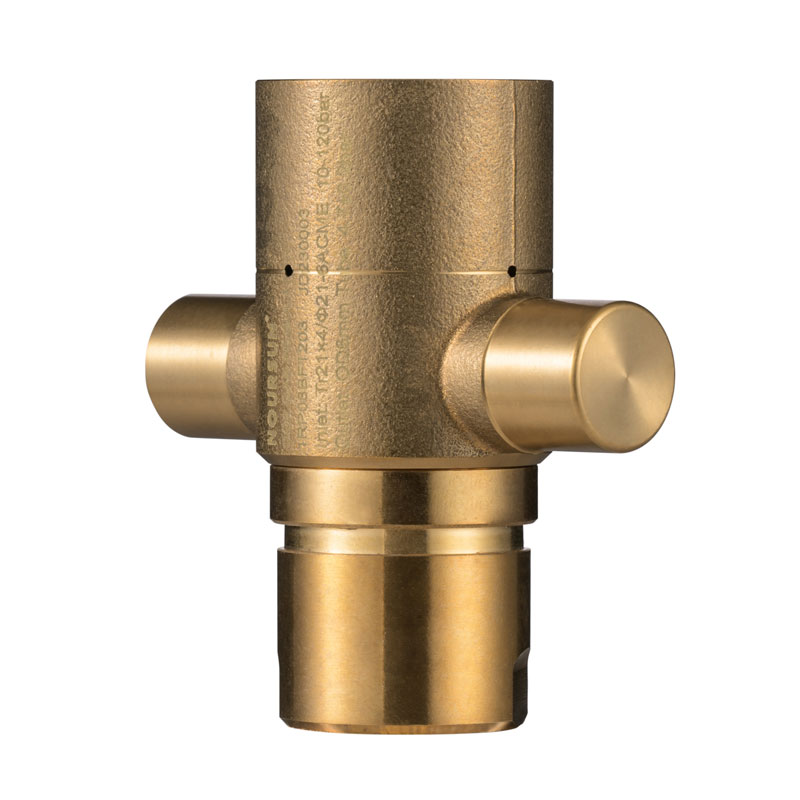

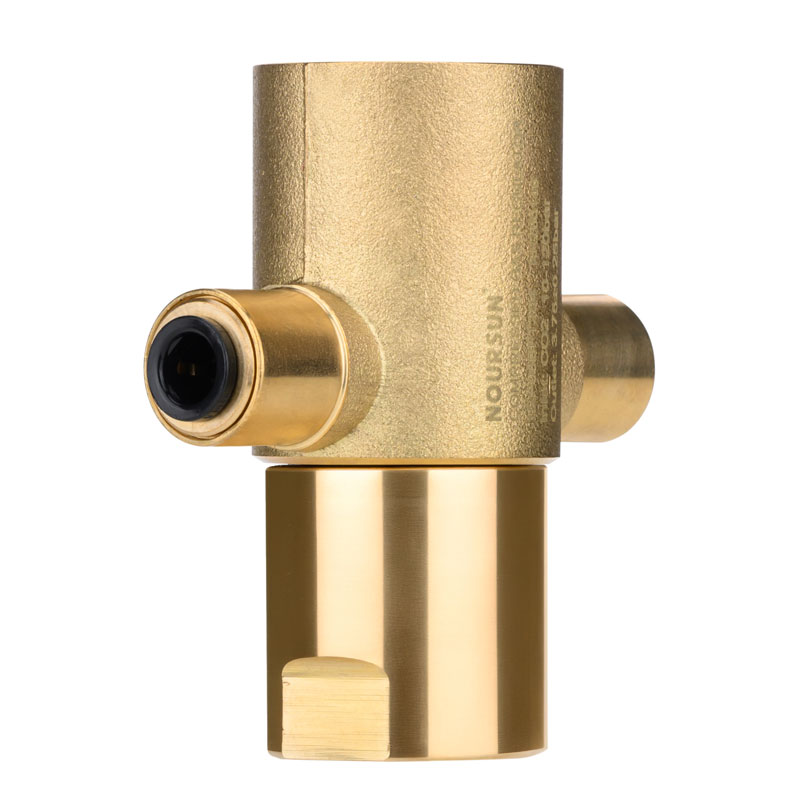

RP08-Soda Water Pressure Regulator
Ideal for various sparkling water machines, including both instant-mix and carbonation-tank-based hybrid models.
A wider pre-set pressure range offers users more customization options to achieve their desired carbonation level and taste.
The lead-free forged brass body provides high thermal conductivity, ensuring a more stable output pressure even under varying temperature conditions.
The Zero-Leakage Valve-Actuation Mechanism ensures maximum gas utilization during the bottle-opening process.
The left and right shafts serve as mounting bracket, allowing radial rotation during cylinder installation or removal to facilitate operation.
| Material | ▲ | Brass | |||
| Medium | CO2 | ||||
| Operating Temperature | -5℃~43℃ | ||||
| Max.Working Pressure | 12Mpa | ||||
| Proof Pressure | 30Mpa | ||||
| Output Pressure | ▲ | 0.30Mpa≤Preset pressure≤0.80Mpa | |||
| Output Pressure Accuracy | ±0.02MPa | ||||
| Inlet Port | ▲ | TR21×4 / M22×2.5 / ∅21-6ACME-2G | |||
| Outlet Port | ▲ | φ6 plug / 1/4“plug | |||
| Relief Pressure(LP side) | Overflow orifice relief mechanism | ||||
| Mounting | Left and right rocker arm mounting shafts | ||||
| Net Weight | 244.3g | ||||
| (▲ marked parts are standard parameters available for customization.) | |||||
| Material | ▲ | Brass | |||
| Medium | CO2 | ||||
| Operating Temperature | -5℃~43℃ | ||||
| Max.Working Pressure | 12Mpa | ||||
| Proof Pressure | 30Mpa | ||||
| Output Pressure | ▲ | 0.30Mpa≤Preset pressure≤0.80Mpa | |||
| Output Pressure Accuracy | ±0.02MPa | ||||
| Inlet Port | ▲ | TR21×4 / M22×2.5 / ∅21-6ACME-2G | |||
| Outlet Port | ▲ | φ6 plug / 1/4“plug | |||
| Relief Pressure(LP side) | Direct-action spring pressure relief valve | ||||
| Mounting | Left and right rocker arm mounting shafts | ||||
| Net Weight | 247.5g | ||||
| (▲ marked parts are standard parameters available for customization.) | |||||

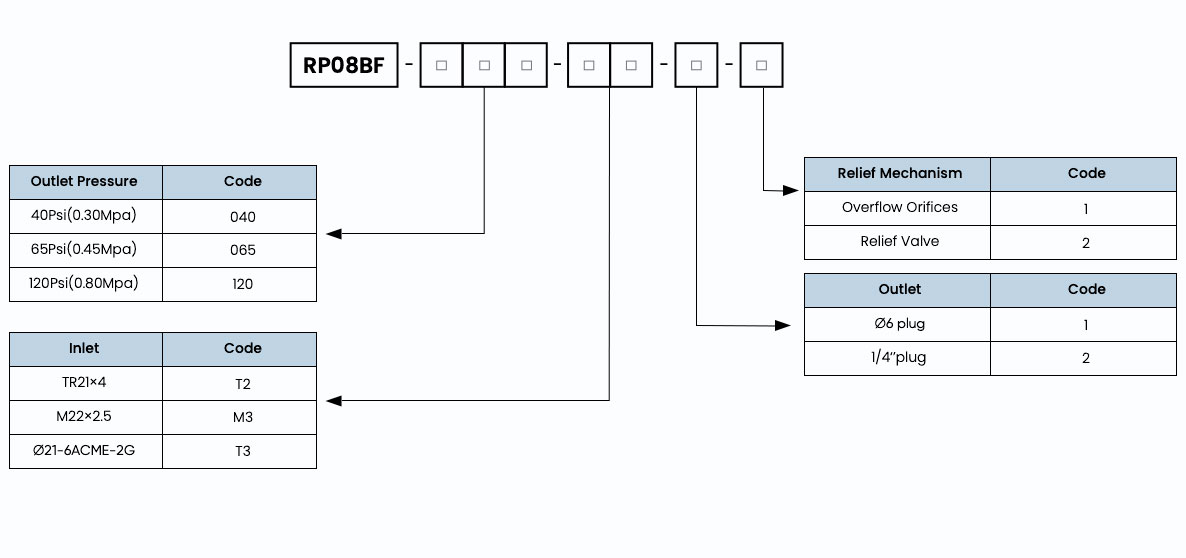

* Ordering code = Model + "-" +Outlet Pressure+"-" + Inlet+"-"+Outlet+"-"+Relief Mechanism
Example: RP08BF-065-T2-1-1
