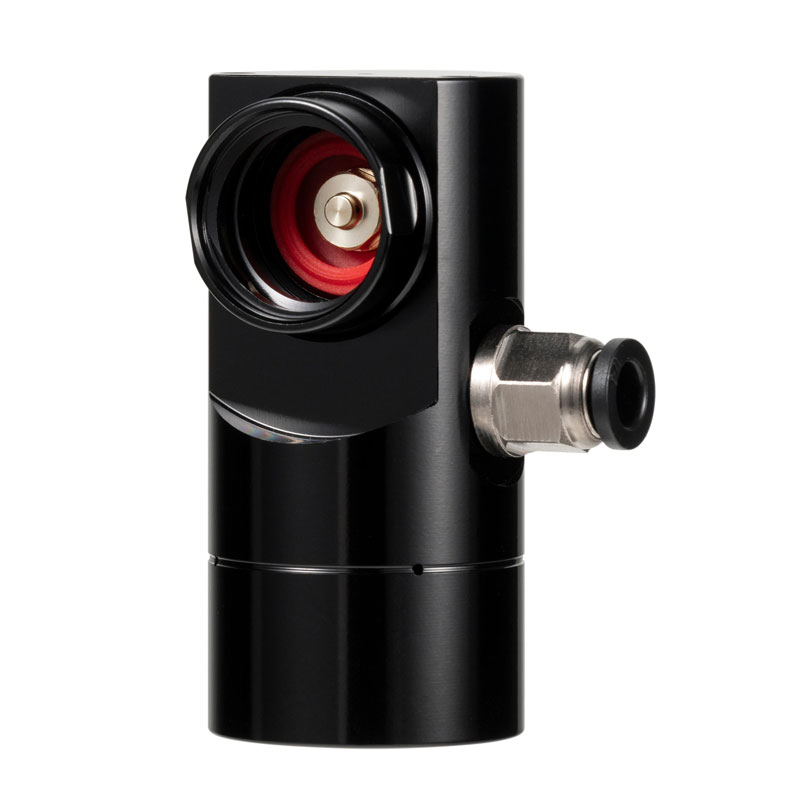

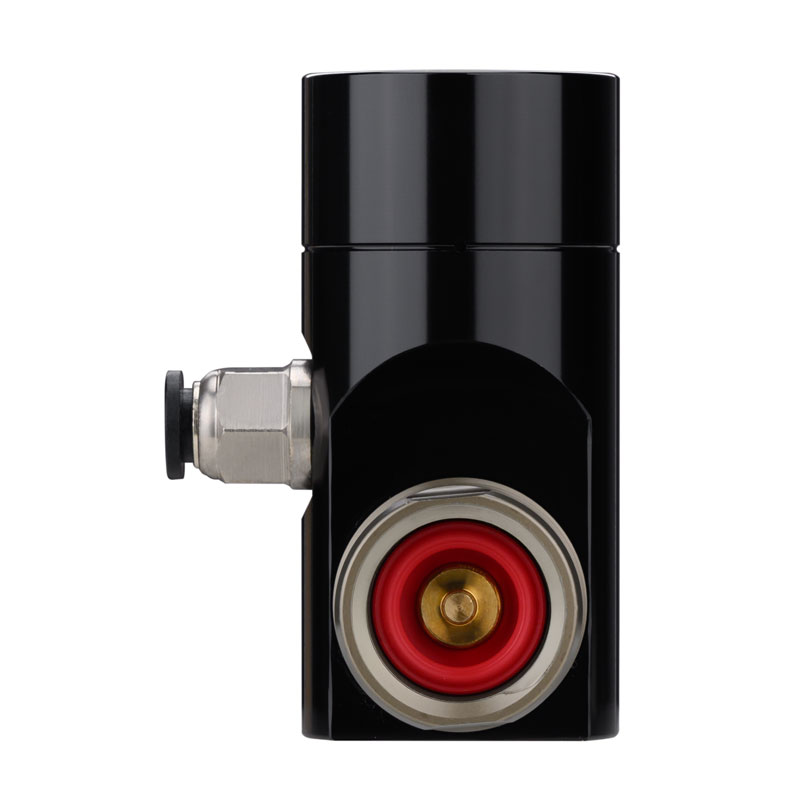

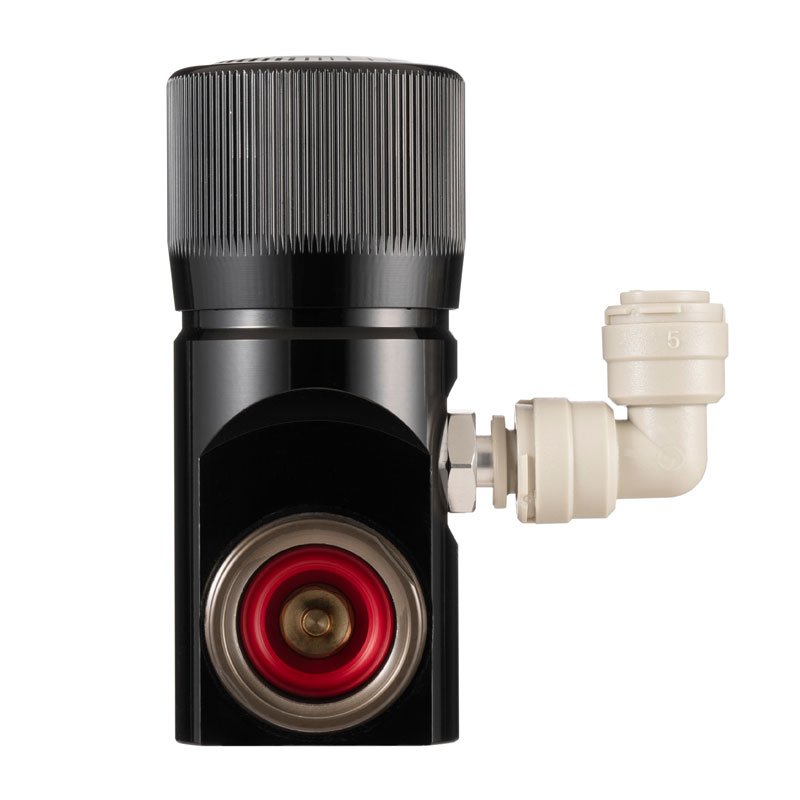

RP12-Carbonated Water CO2 Regulator

Application

Designed for hybrid sparkling water machines, it is typically installed inside the unit. It offers adjustable or preset pressure types and multiple gas cylinder connection options to.

Key Features

Lowers the regulator height via a pressure-reducing mechanism.
Offers different inlet port types for various soda CO₂ cylinders.
Achieves zero leakage at connection points for optimal gas efficiency.

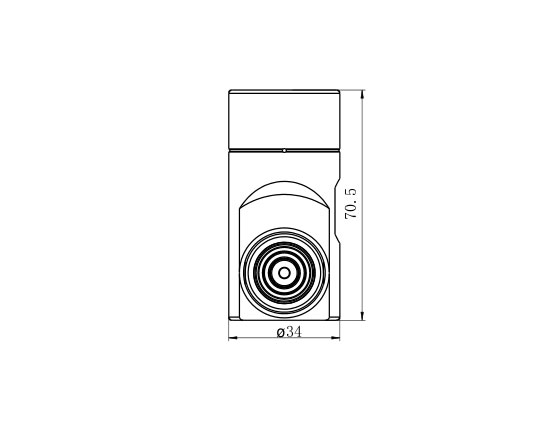

RP12-preset pressure
RP12-for paintaball cylinder
RP12-with plastic snap
RP12-with extended inlet port
RP12-with needle valve

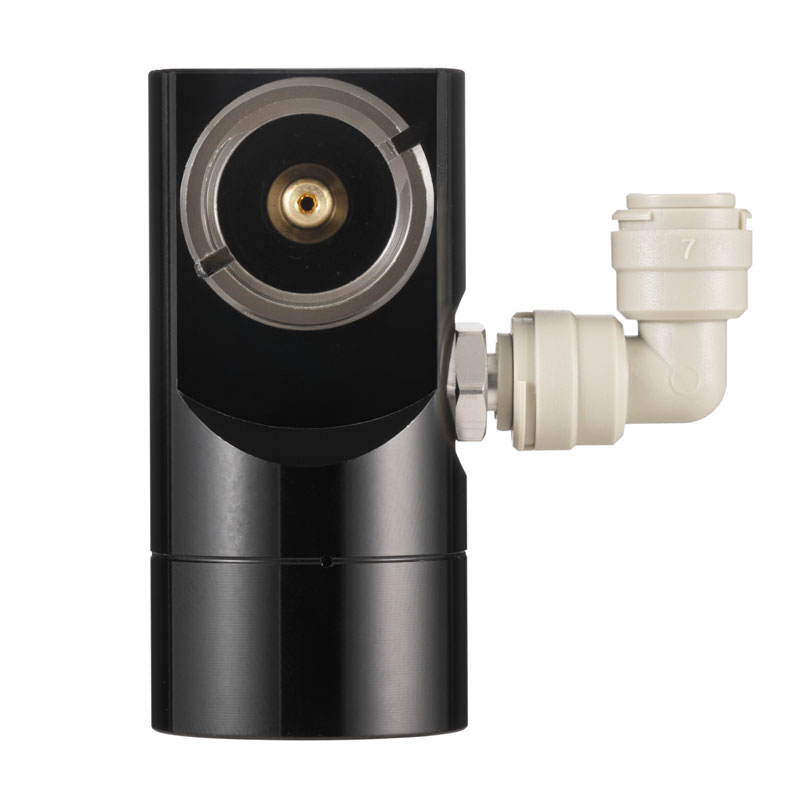

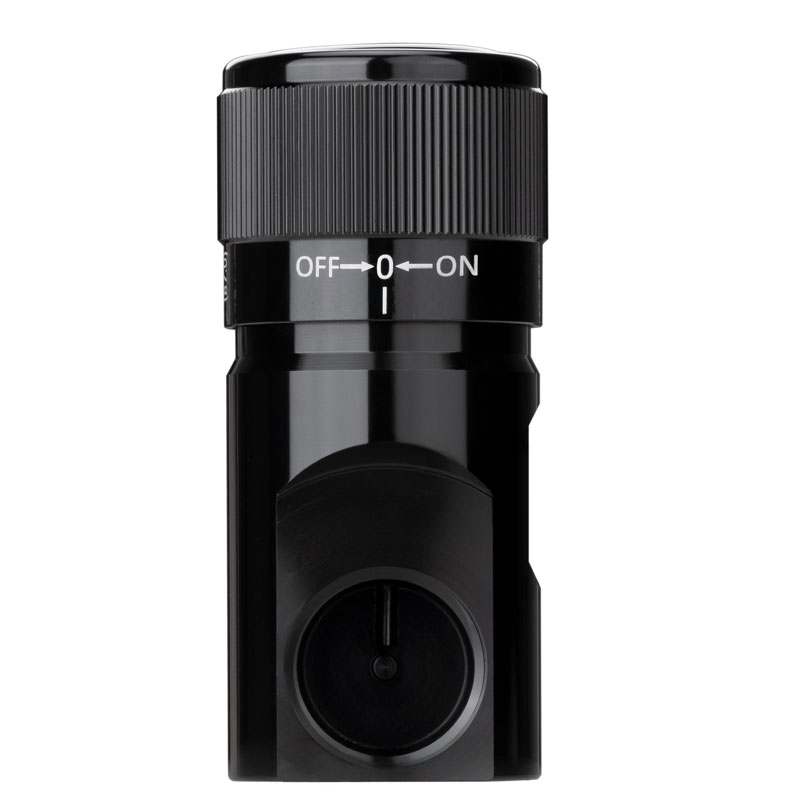

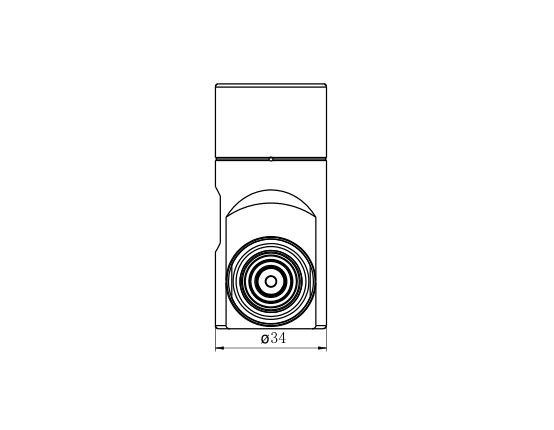

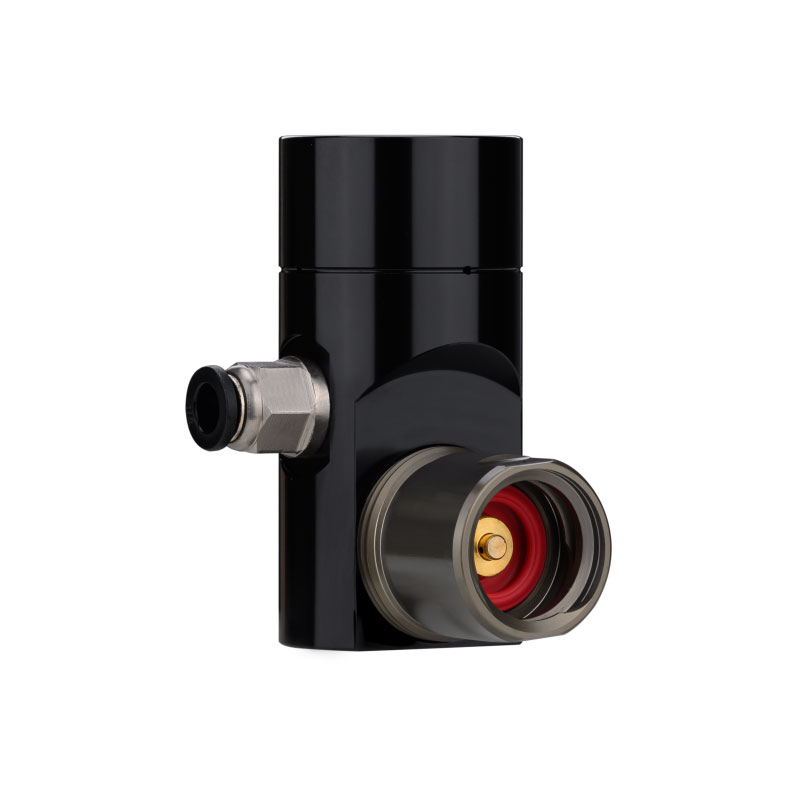

Product Images & Specifications
      • RP12
      Material ▲ Aluminum
      Medium CO2
      Operating Temperature  ‑5℃～43℃
      Max.working pressure 12Mpa
      Proof Pressure 30Mpa
      Output Pressure ▲ 0.30Mpa≤preset pressure≤0.80Mpa
      Output Pressure Accuracy ±0.03MPa
      Inlet Port ▲ TR21×4 / φ21-6ACME / G1/2-14
      Outlet Port ▲ 1/4" / 6mm quick connector / G1/8
      Relief pressure(LP side) Overflow orifice relief mechanism

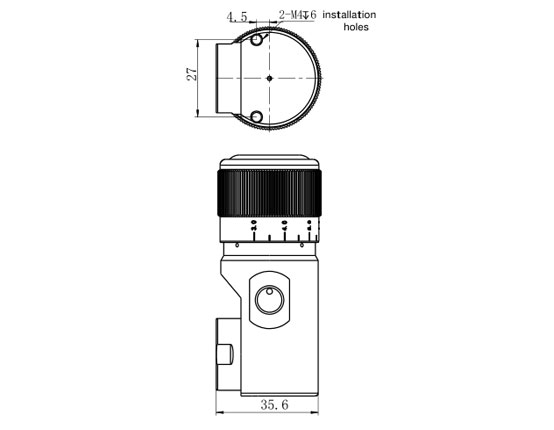

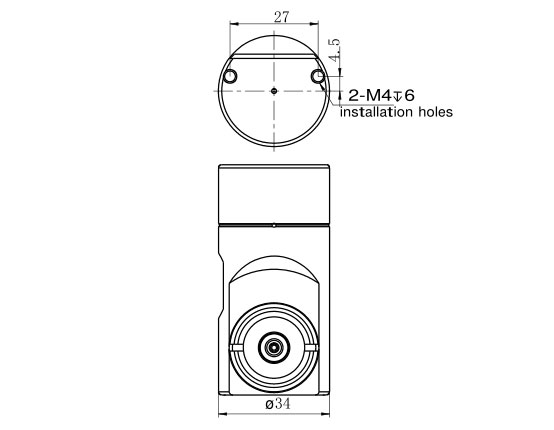

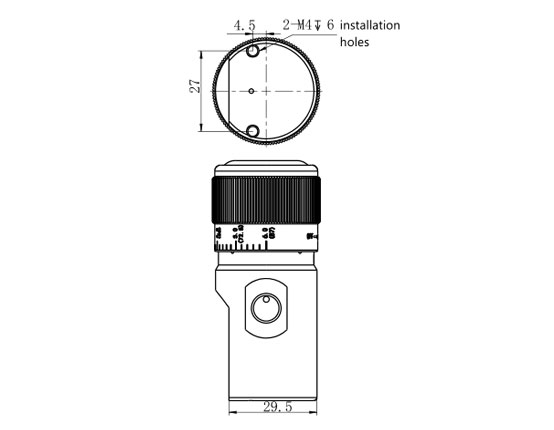

      Mounting ▲ Null / M4 x2 at the bottom /  φ5.1 on the side
      Net Weight  154g
      (▲ marked parts are standard parameters available for customization.)
  • RP12
  • RP12

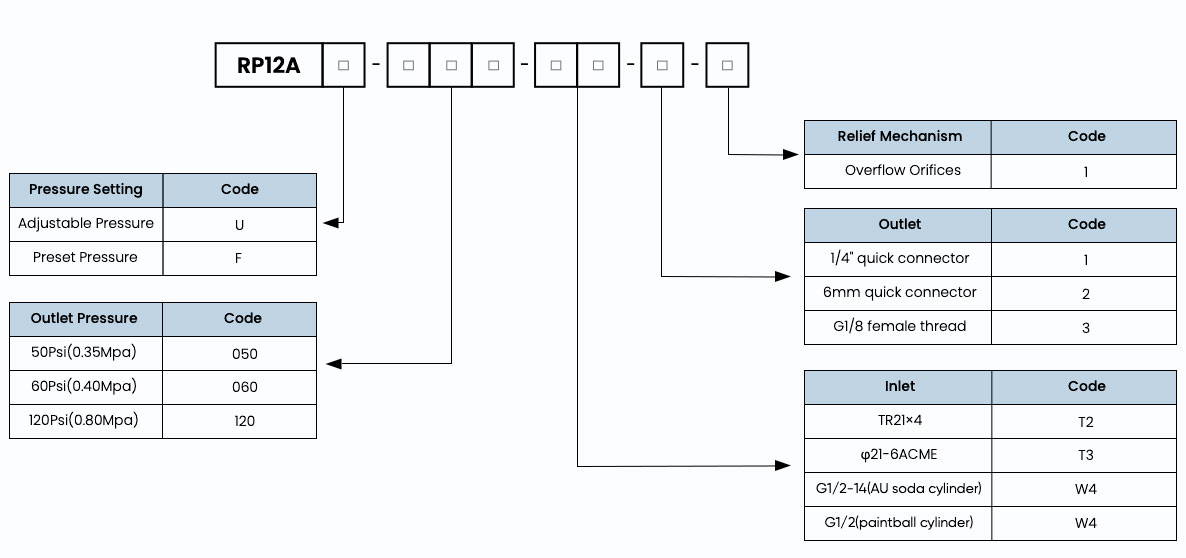

Ordering Code

* Ordering code = Model +Pressure Setting+ "-" +Outlet Pressure+"-" + Inlet+"-"+Outlet+"-"+Relief Mechanism

RP12AU-060-T2-1-1
