Product Center

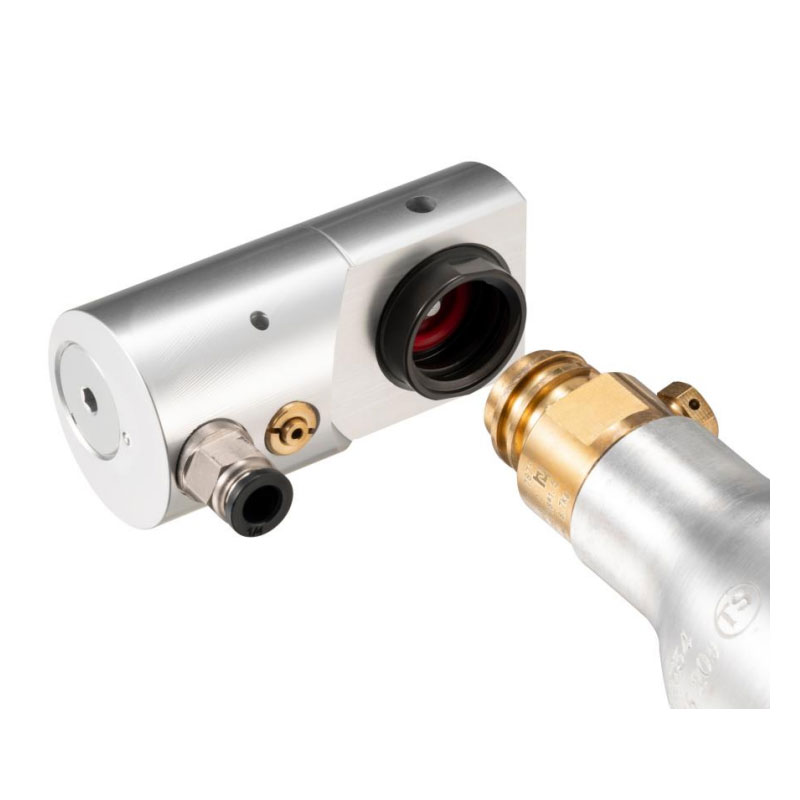

RP13-Sparkling Water CO2 Regulator
An upgraded version of the RP12, designed for carbonated sparkling water machines, is installed inside the unit. Ideal for customers with specific requirements regarding air outlet direction or mounting bracket position.
The pressure relief mechanism reduces the height of the pressure regulator, saving space inside the sparkling water machine.
Different inlet port types meet the connection requirements of various soda CO₂ cylinders.
The Zero-Leakage Valve-Actuation Mechanism ensures maximum gas utilization during the bottle-opening process.
| Material | ▲ | Aluminum | ||
| Medium | CO2 | |||
| Operating Temperature | ‑5℃~43℃ | |||
| Max.Working Pressure | 12Mpa | |||
| Proof Pressure | 30Mpa | |||
| Output Pressure | ▲ | 0.35Mpa≤preset pressure≤0.55Mpa | ||
| Output Pressure Accuracy | ±0.03MPa | |||
| Inlet Port | ▲ | TR21×4 / φ21-6ACME / G1/2-14 / M22*2.5 | ||
| Outlet Port | ▲ | 1/4" / 6mm quick connector / G1/8 | ||
| Relief pressure(LP side) | Built-in pressure relief valve | |||

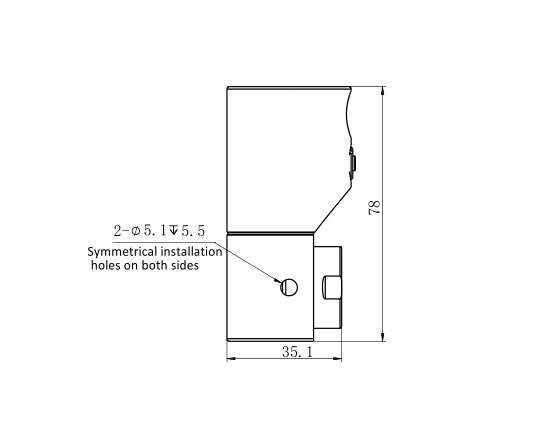

| Mounting | ▲ | Null / M5.1 on the side | ||
| Net Weight | 204g | |||
| (▲ marked parts are standard parameters available for customization.) | ||||

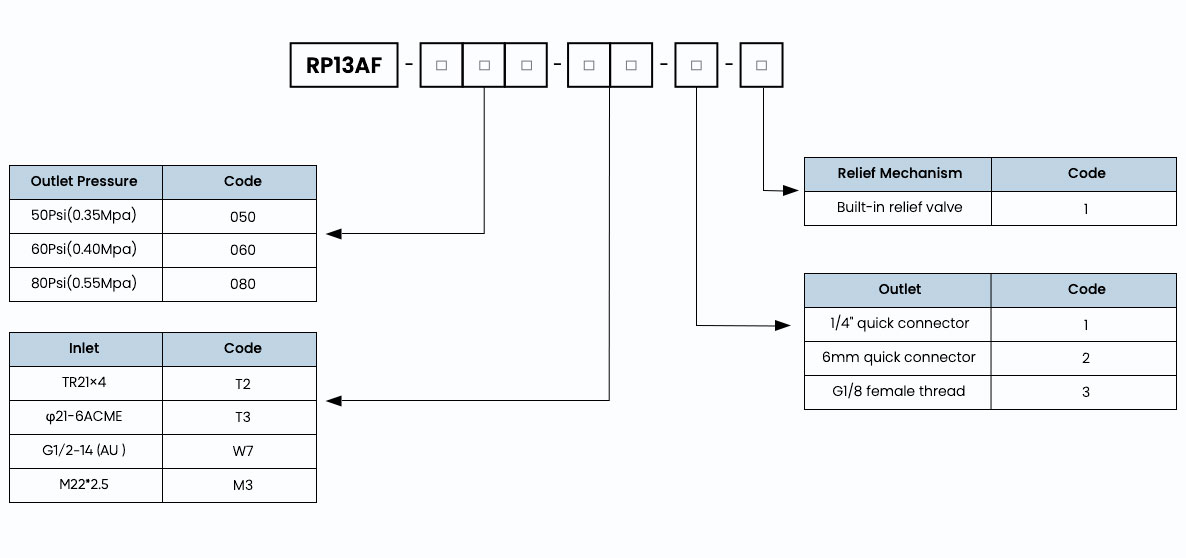

* Ordering code = Model + "-" +Outlet Pressure+"-" + Inlet+"-"+Outlet+"-"+Relief Mechanism
Example: RP13AF-060-T2-1-1
