RP20-Beer CO2 Regulator

Application

Designed for the beer/beverage distribution market, connects to various cylinders or tanks to deliver stable pressure to end users.

Key Features

Lightweight and portable design.
Leak-proof puncture technology protects users when tightening the cylinder.
Maximizes utilization via zero leakage.

RP20-for 16/74g disposable CO2 cartridge
RP20-for Italy/France disposable CO2 cylinder

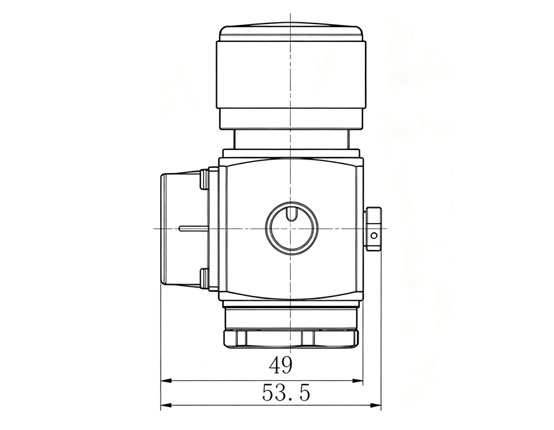

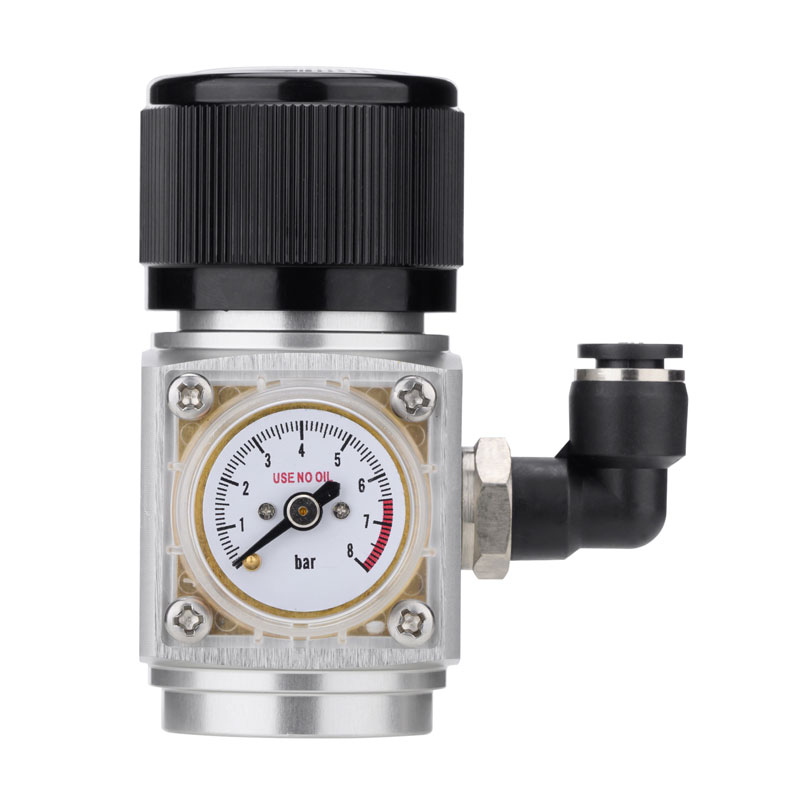

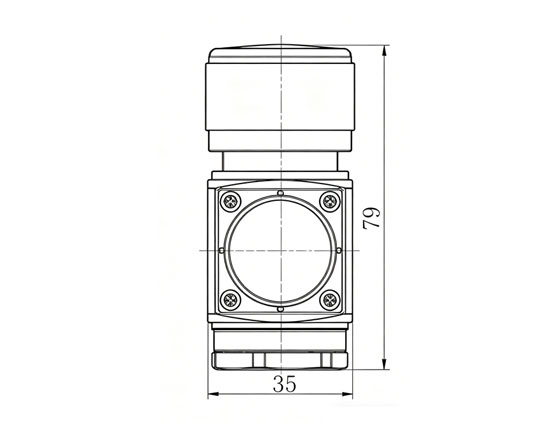

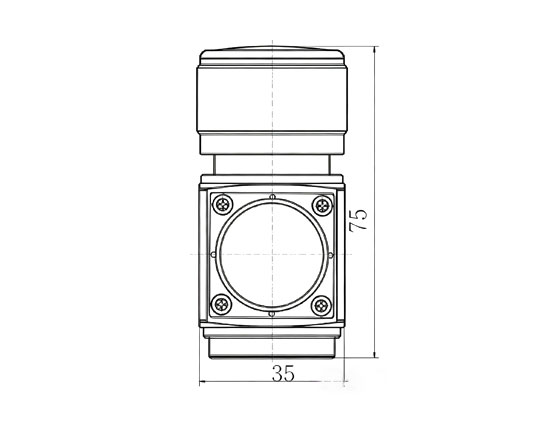

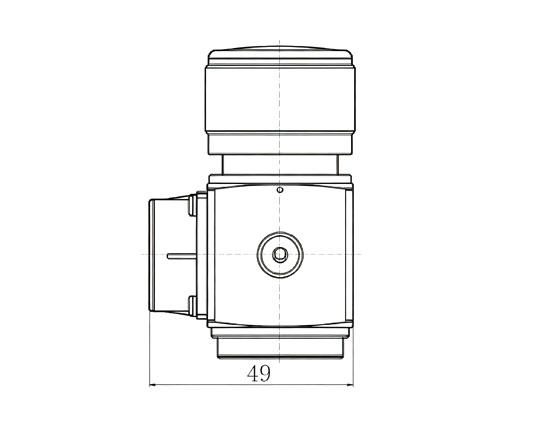

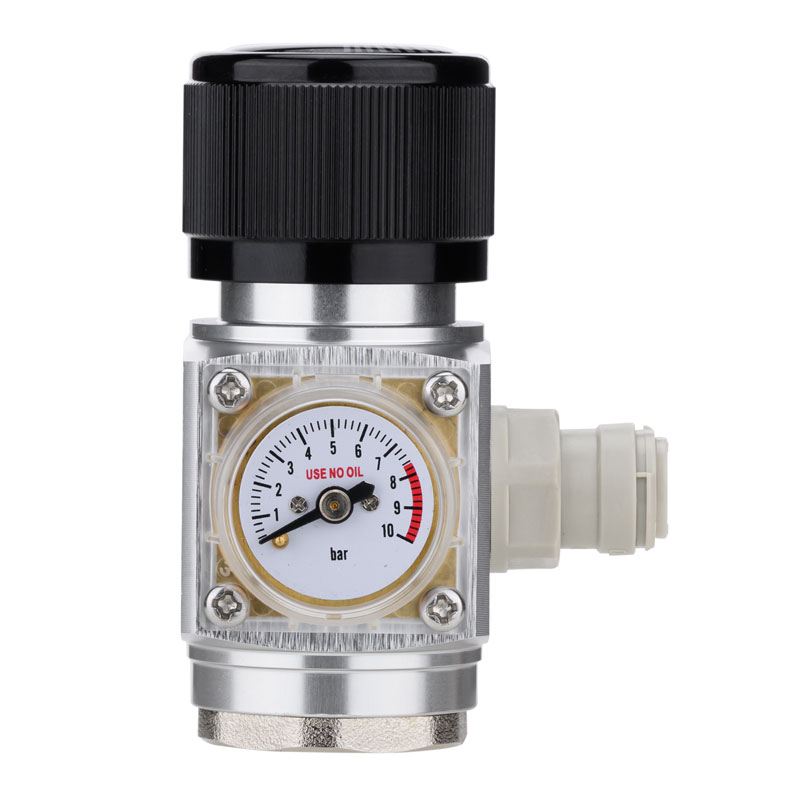

Product Images & Specifications
      • RP20
      Material ▲ Aluminum
      Medium CO2
      Operating Temperature ‑5℃～43℃
      Max.Working Pressure 12Mpa
      Proof Pressure 30Mpa
      Output Pressure ▲ 0.03～1.00Mpa
      Output Pressure Accuracy ±0.02MPa
      Pressure Indication Push-in type pressure gauge
      Indication Accuracy Class IV (EN 837-1)
      Inlet Port ▲ 3/8-24UNF / 5/8-18UNF
      Outlet Port ▲ G1/8 / NPT1/8
      Relief Pressure (HP side) 20Mpa
      Mounting ▲ Null / M3*4
      Net Weight 175g
      (▲ marked parts are standard parameters available for customization.)
  • RP20
  • RP20

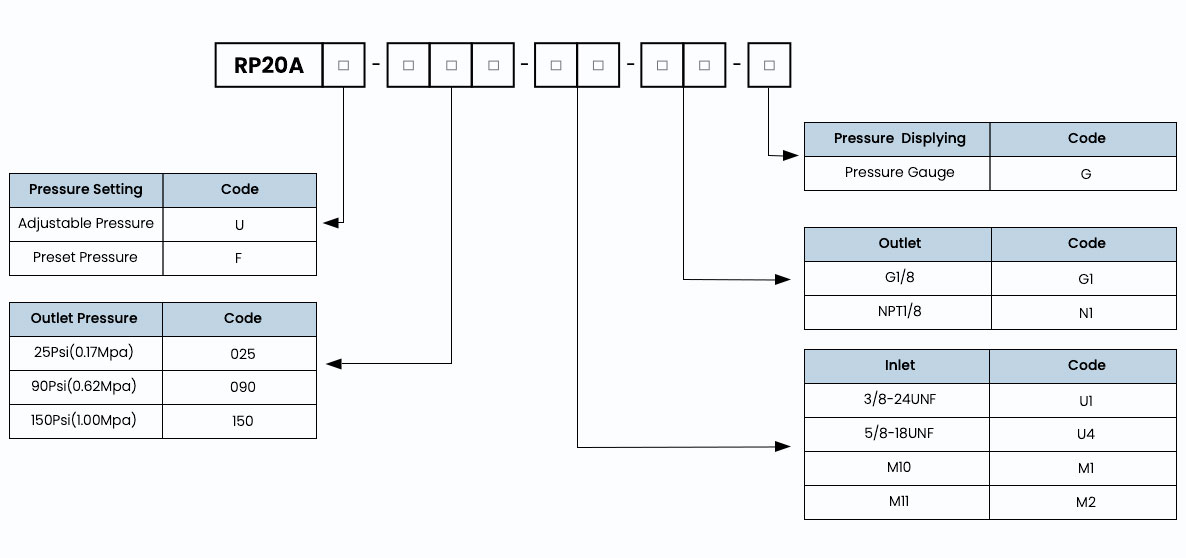

Ordering Code

* Ordering code = Model +Pressure Setting+ "-" +Outlet Pressure+"-" + Inlet+"-"+Outlet+"-"+Relief Mechanism

Example:  RP20AU-090-U4-G1-G
