RP24-Paintball Tank Pressure Regulator

Application

RP24 is a pressure regulator developed based on the paintball guns .

Key Features

1/2 thread inlet for connecting to the Paintball CO₂ tanks.
Left or right outlet direction option, with quick connector available.
Convenient and efficient pressure adjustment and locking mechanism for the paintball guns market.

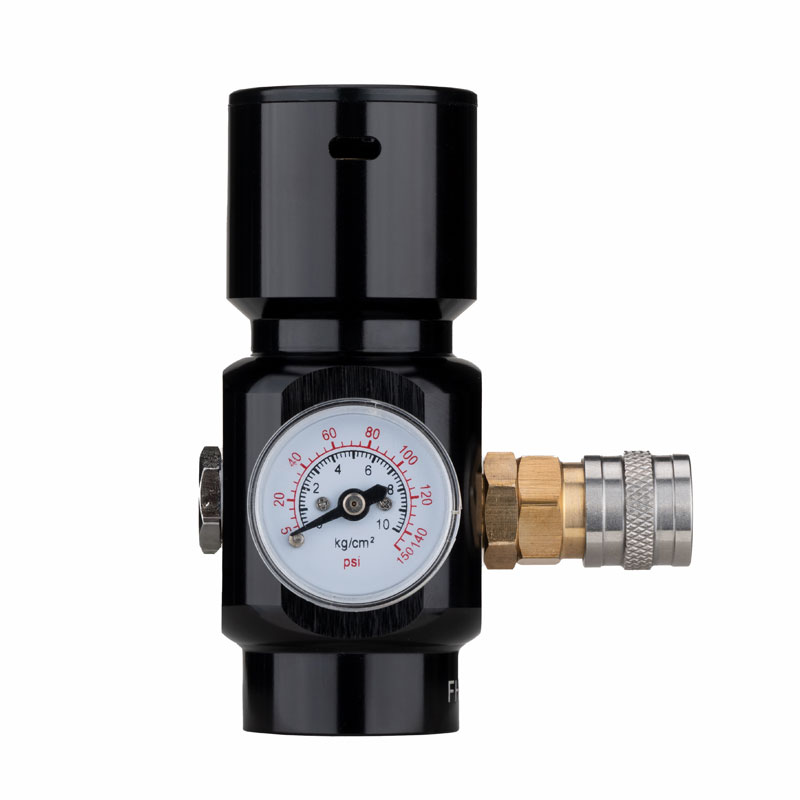

RP24-Paintball Tank Pressure Regulator

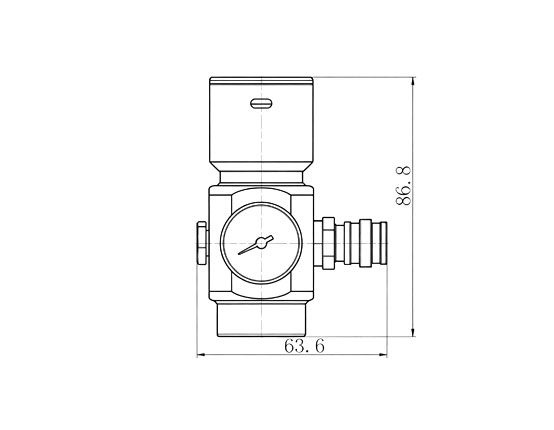

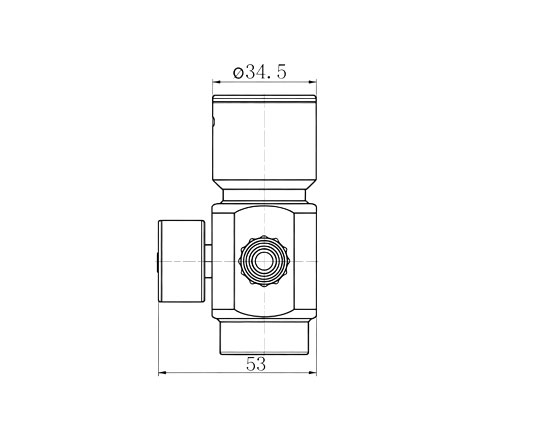

Product Images & Specifications
      • RP24
      Material ▲ Aluminum
      Medium air、N2、CO2
      Operating Temperature  ‑5℃～43℃
      Max.Working Pressure 12Mpa
      Proof Pressure 30Mpa
      Output Pressure ▲ 0.02～1.50Mpa
      Output Pressure Accuracy ±0.02MPa
      Pressure Indication Y25 Axial pressure gauge
      Indication Accuracy Class IV (EN 837-1)
      Inlet Port ▲ G1/2
      Outlet Port ▲ G1/8
      Mounting φ8 special interface for paintball guns
      Net Weight  240g
      (▲ marked parts are standard parameters available for customization.)
  • RP24
  • RP24

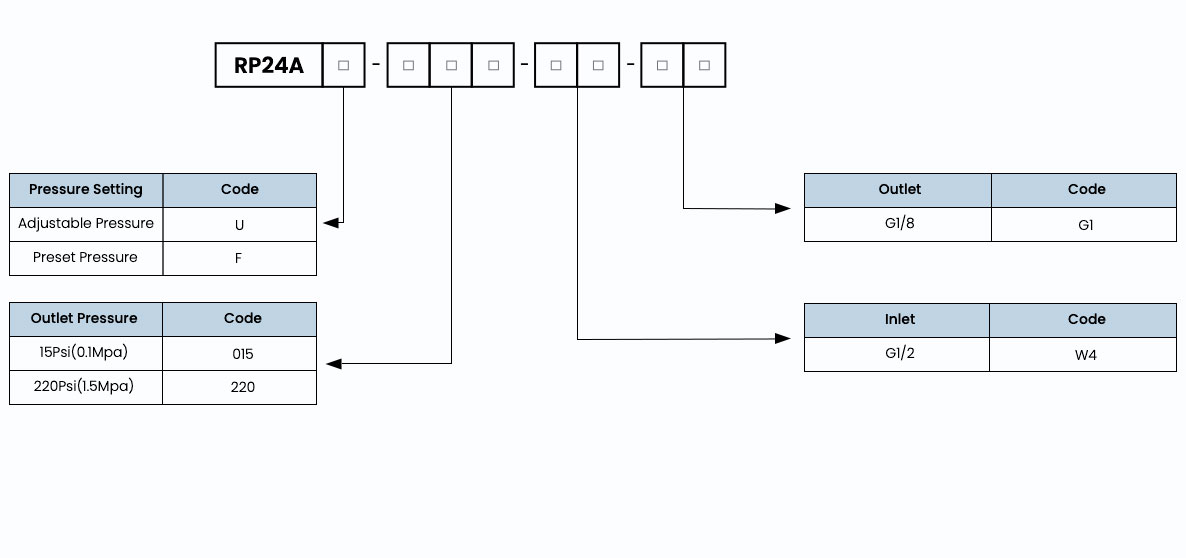

Ordering Code

* Ordering code = Model +Pressure Setting+ "-" +Outlet Pressure+"-" + Inlet+"-"+Outlet

Example: RP24AU-015-W4-G1
