Product Center

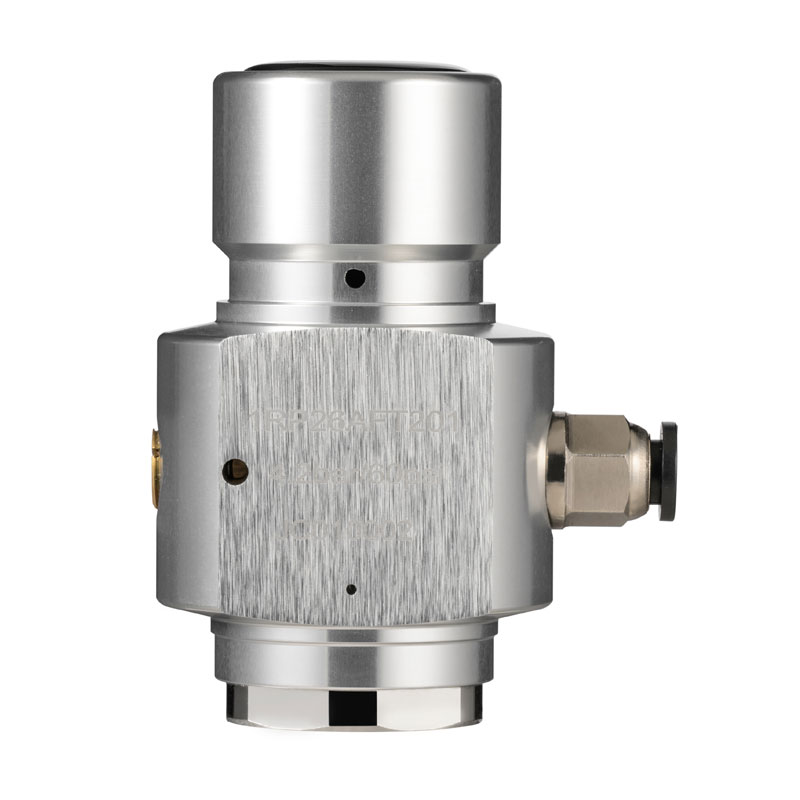

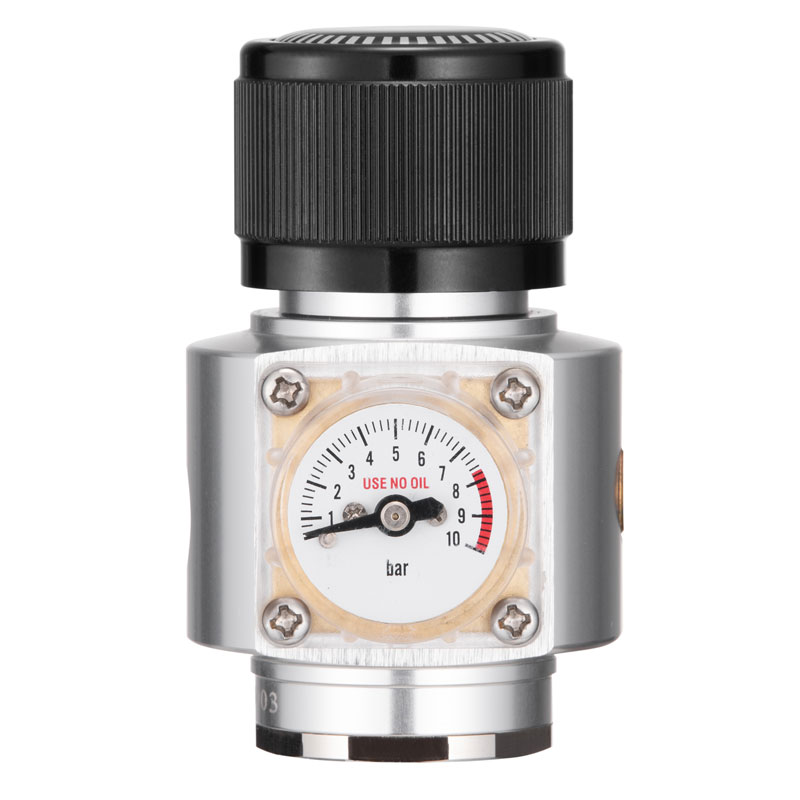

RP26-Soda Water Pressure Regulator

Application

Compatible with various soda water machines for both internal and external installation, the RP26 comes in adjustable and preset pressure models to meet customer needs.

Key Features

Wide pressure adjustment range.
Built-in pressure gauge for easy setting.
Zero-leakage mechanism maximizes cylinder efficiency.

RP26-adjustable pressure
RP26-preset pressure

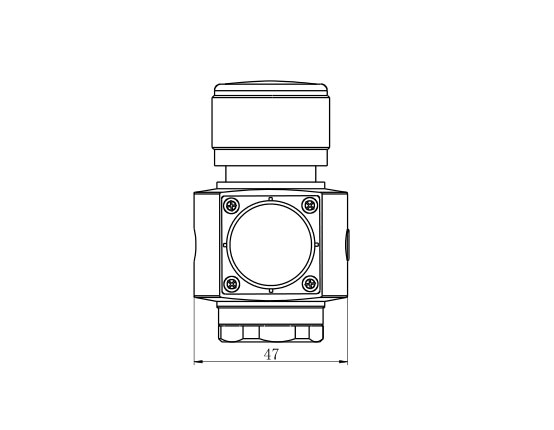

Product Images & Specifications
      • RP26
      Material ▲ Aluminum
      Medium CO2
      Operating Temperature ‑5℃～43℃
      Max.Working Pressure 12Mpa
      Proof Pressure 30Mpa
      Output Pressure  ▲ 0.03～1.00Mpa
      Output Pressure Accuracy ±0.02MPa
      Pressure Indication Push-in type pressure gauge
      Indication Accuracy Class Ⅳ (EN 837-1)
      Inlet Port ▲ Tr21×4 / φ21-6ACMEB21 / G1/2
      Outlet Port ▲ G1/8 / NPT1/8
      Relief Pressure(LP side) Built-in pressure relief valve
      Mounting ▲ Null / M3 on side
      Net Weight 233g
      (▲ marked parts are standard parameters available for customization.)
  • RP26
  • RP26

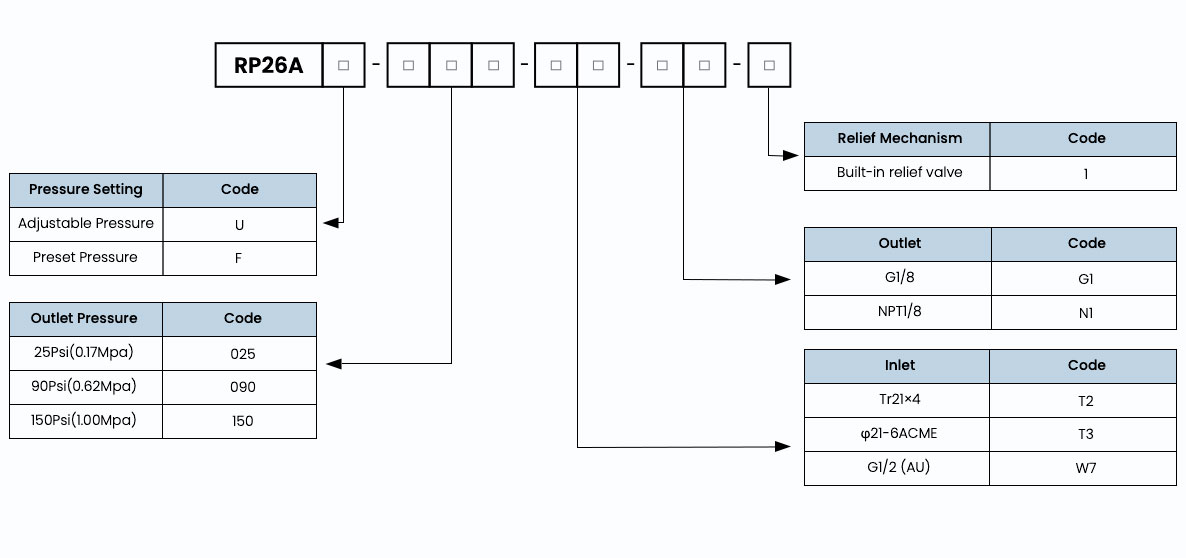

Ordering Code

* Ordering code = Model +Pressure Setting+ "-" +Outlet Pressure+"-" + Inlet+"-"+Outlet+"-"+Relief Mechanism

Example: RP26AU-090-T2-G1-1
