RP30-Pressure Regulayor for Soda

Application

 Compatible with all commercial soda water machines and CO₂ cylinders from various countries, available in adjustable or preset pressure types.

Key Features

Equipped with a pull ring relief valve to ensure users safety.
Wide adjustable pressure range.
Bottom air inlet design for more convenient use.

RP30-adjustable pressure

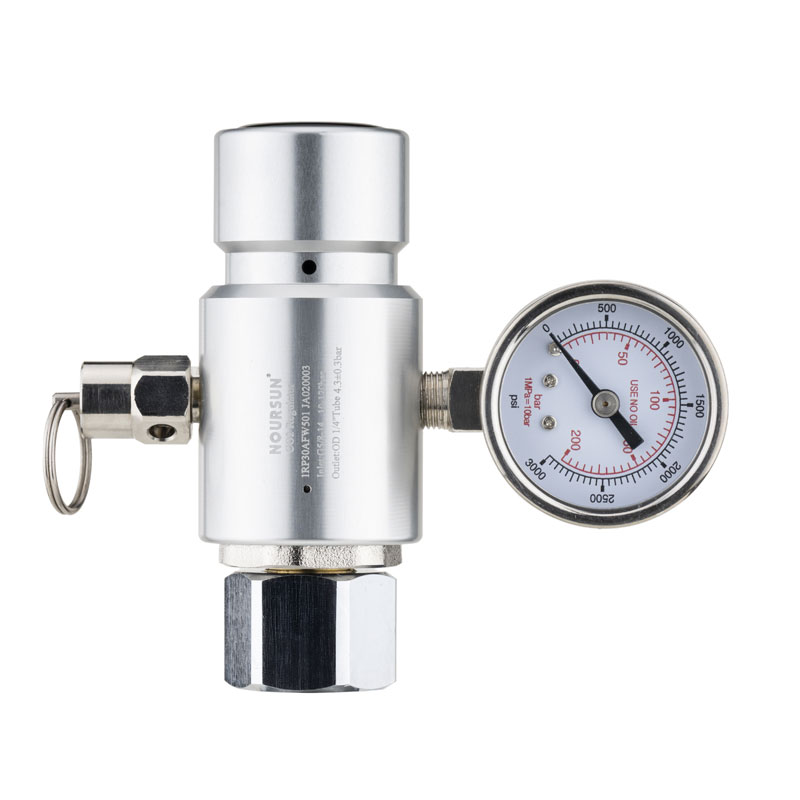

RP30-preset pressure

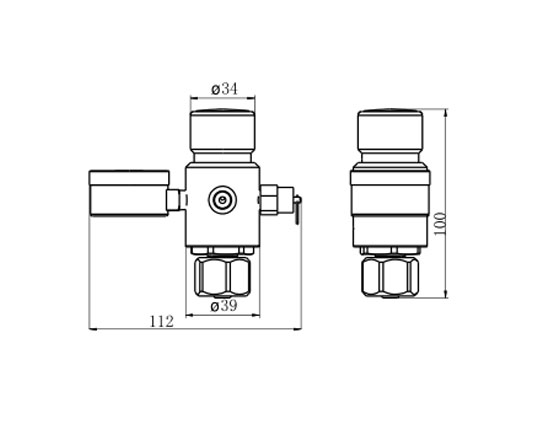

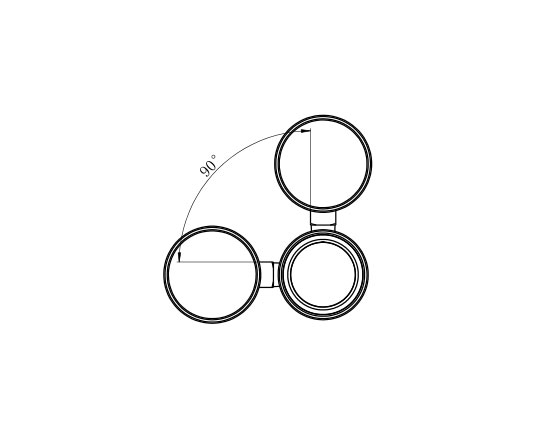

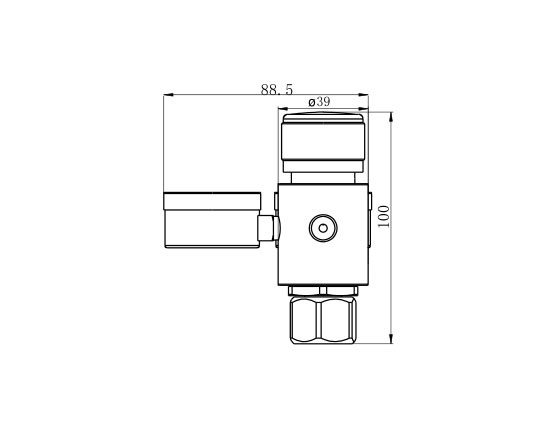

Product Images & Specifications
      • RP30
      Material ▲ Aluminum
      Medium CO2
      Operating Temperature ‑5℃～43℃
      Max. Working Pressure 12Mpa
      Proof Pressure 30Mpa
      Output Pressure ▲ 0.03～1.00Mpa
      Output Pressure Accuracy ±0.02MPa
      Pressure Indication Y40 dual pressure gauges for inlet and outlet
      Indication Accuracy Class Ⅳ (EN 837-1)
      Inlet Port ▲ W21.8-14 / W22-14 / CGA320 / G5/8 /  G3/4
      Outlet Port ▲ G1/8 / NPT1/8
      Net Weight 502g
      (▲ marked parts are standard parameters available for customization.)
  • RP30
  • RP30
Ordering Code

* Ordering code = Model +Pressure Setting+ "-" +Outlet Pressure+"-" + Inlet+"-"+Outlet+"-"+Relief Mechanism

Example: RP30AU-090-W1-G1-1
